How to assemble and install the valve module and print module of the printer head of Videojet 1000 series inkjet printer?

How to install the valve module?

First of all, we install the solenoid valve, the washers above the solenoid valve must not be missing:

The solenoid valve is installed:

Once installed, we put this tube under the valve module,put the pipe in place:

Once the pipe is set, we can plug it in here:

Just install the six screws here:

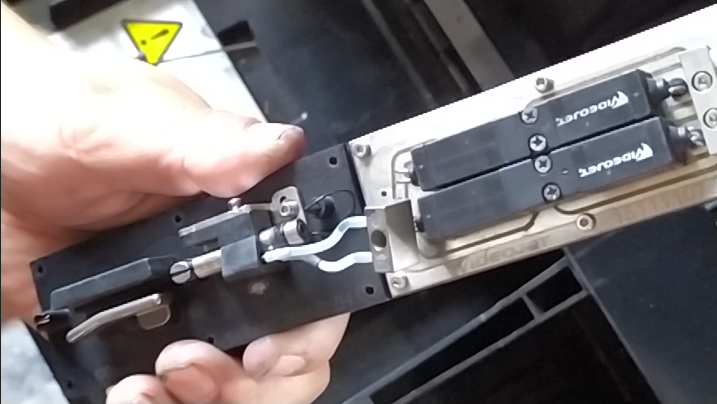

We have installed this valve module:

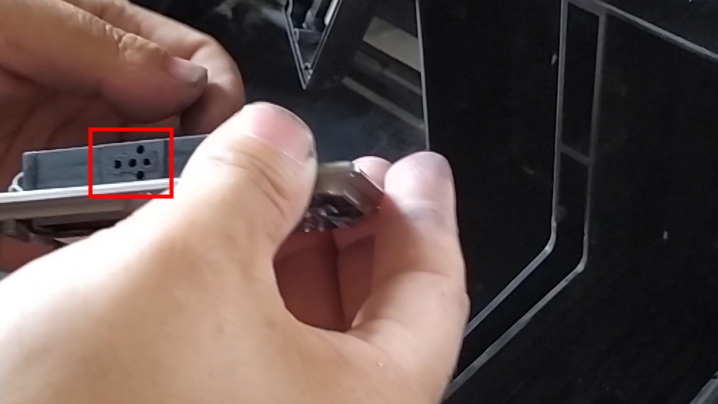

Be sure to see if there are washers behind this one with three tubes:

Then we install it:

Let’s install this print module:

Connect it:

Then insert the recycling tank into this hole in the recycling tank:

Let’s just install the screws:

Connect the ink supply pipe:

Installation complete:
