To remove the high-voltage package, first unplug the wires at both ends of the high-voltage package.

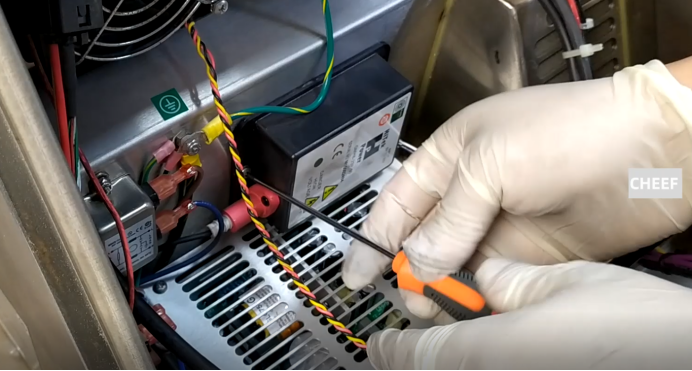

Then remove the screws, and the high voltage package can be removed.
How to remove the filter? Unscrew the screw on the filter. After removing the screws, the filter can be taken out.

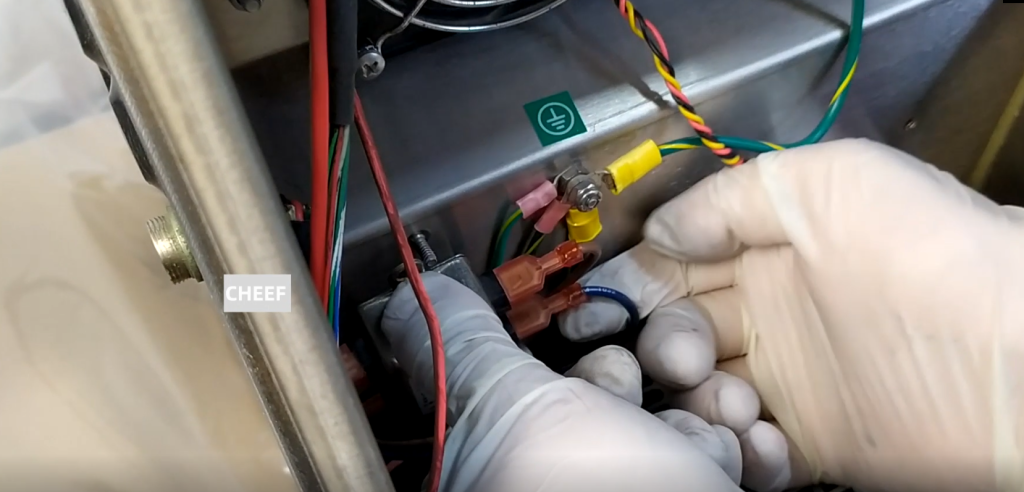

We unplug the wires on both sides. After replacing a switch filter, plug in the corresponding wires, and plug in the four wires on both sides. Don’t insert it backwards. If you don’t know how to insert it, just make a mark on the lines on both sides, and then we will install it.

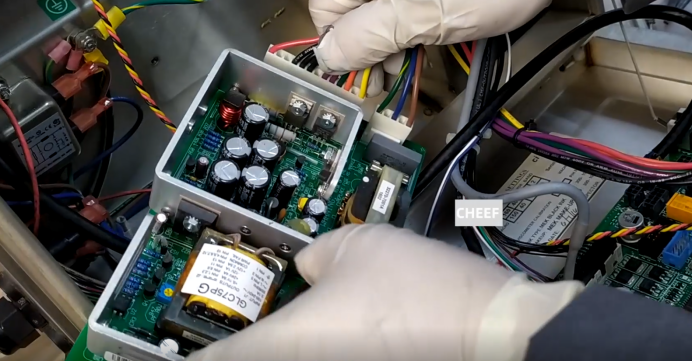

Next we will remove the power supply. If the power supply is removed, first we remove the high voltage package and remove the power screw.

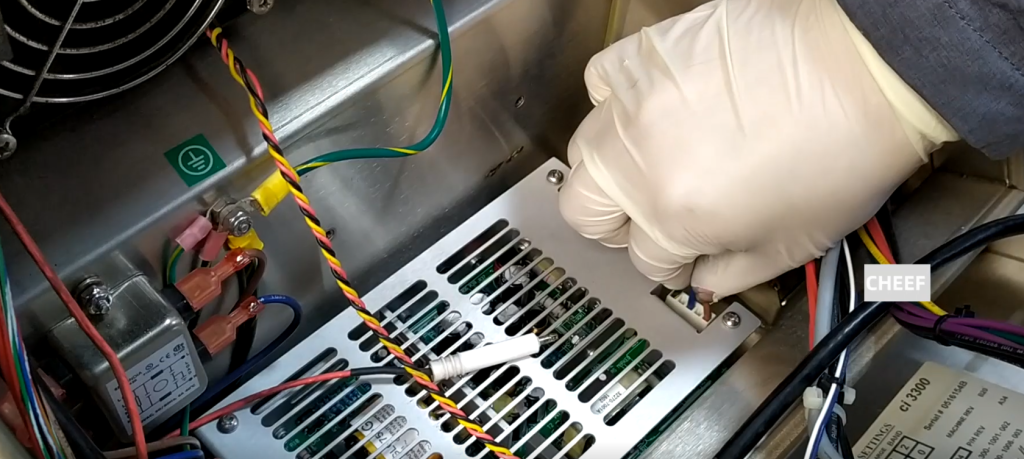

We also need to remove the cable on the power supply side, and the power supply is completely removed.
Let’s install the power supply again, and install it as we disassemble it. Install the fixing post.
Put the cover back on and secure the four screws of the power supply.
Plug in the power cord.

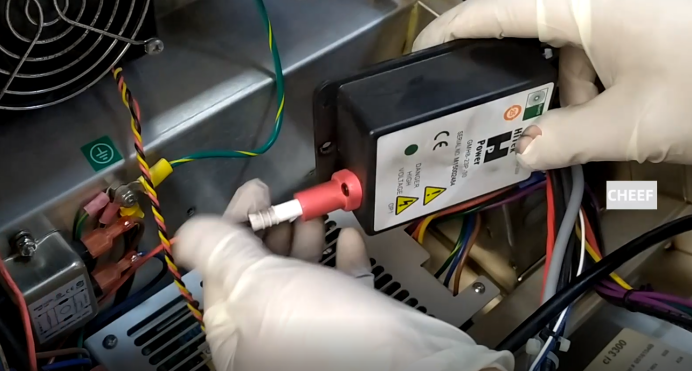

Then we will pack the high voltage, don’t reverse the direction, you can plug in the socket first, and then we will install it after it is plugged in.

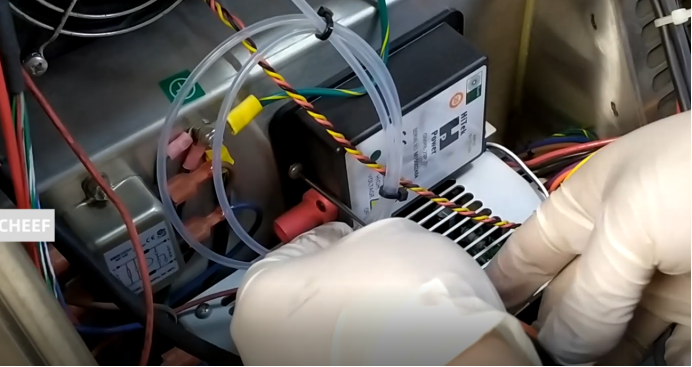

Screw on the high pressure package screw, and the high pressure package is installed.
