This stainless steel filter is called the ink supply filter, which is connected to our this ink supply pipe. If we’re going to tear it down, just spin it off. When we remove it, if it has ink, put something under it.
Then take it apart, which is the ink filter. It has some ink in it here.
It’s the same if we pretend, and we put it again
This end is also installed, no direction, we just have to put it installed.
Tighten.

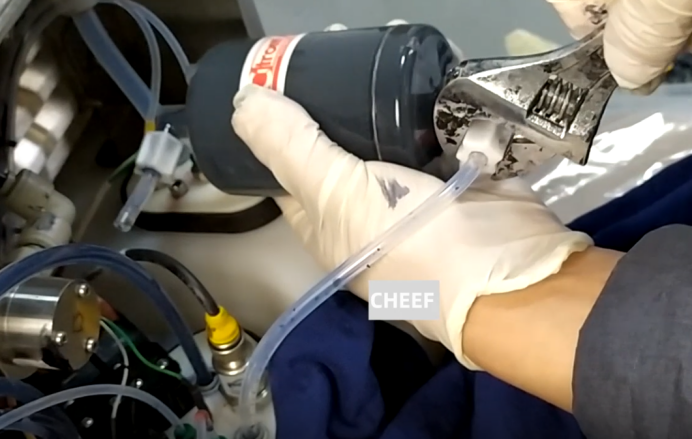

This black one is the solvent filter, and when we remove the solvent filter, we just remove the two ends, Very simple, with no direction.
Then this white one is the recovery filter, connected to the recovery valve. Recycle the filter, we just remove it and screw it off.

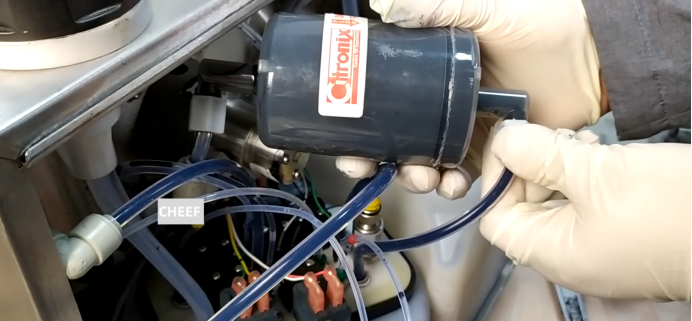

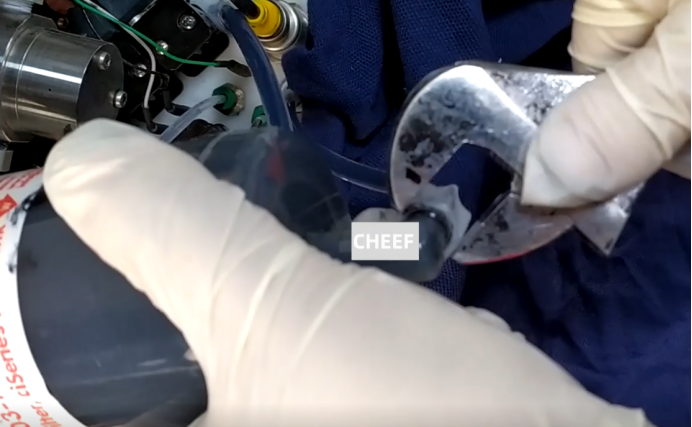

There is also a main filter. The main filter just needs to spin off both sides.

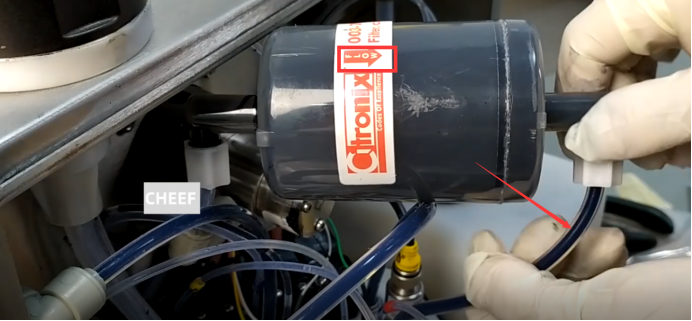

Don’t go it when you install it. It has a direction. The arrow pointing to the bottom is placed on the tube.

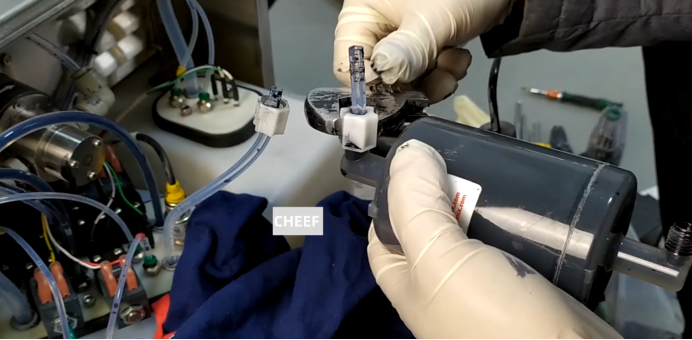

Be careful when removing the main filter that he will flow ink, so we need to change the cloth. We just spin it off. Pull out slowly, don’t scatter on the body.

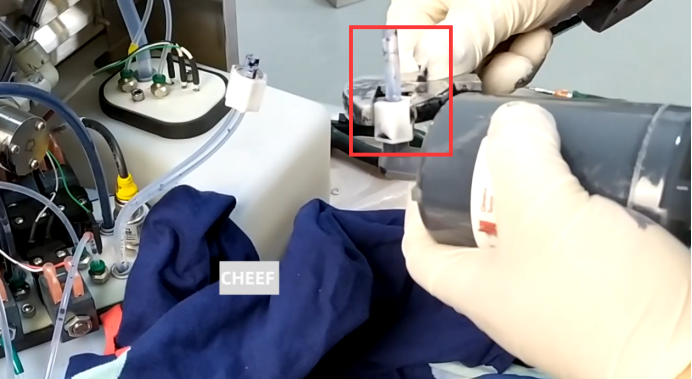

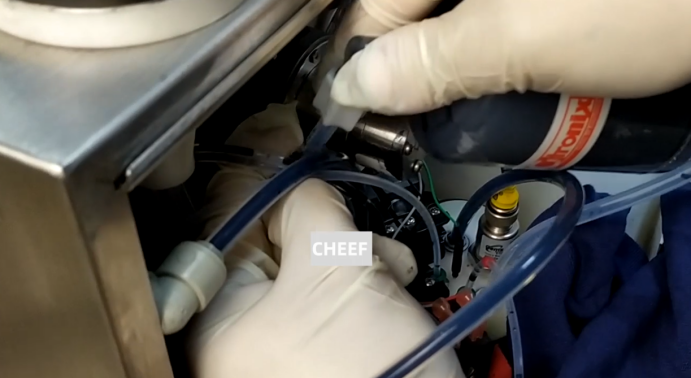

And this end, this end is connected to the pump, if not very easy, we pull this together, the main filter is removed.
Change it, just spin this off.

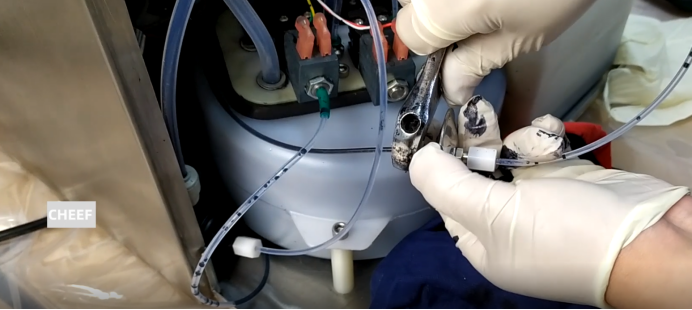

The installation step is the opposite of the disassembly step. We put this tube on it.
Once the pipe is mounted, put the tube under it.
Then we put it in and put it into our pump. Must set tight.

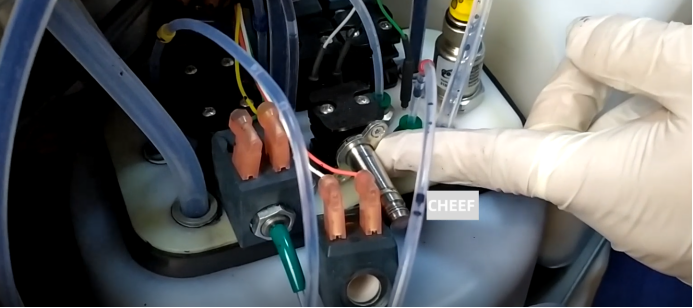

There are five solenoid valves, five solenoid valves are the same, all can be universal, we only remove a good. If we want to remove a valve, we must first remove the coil.

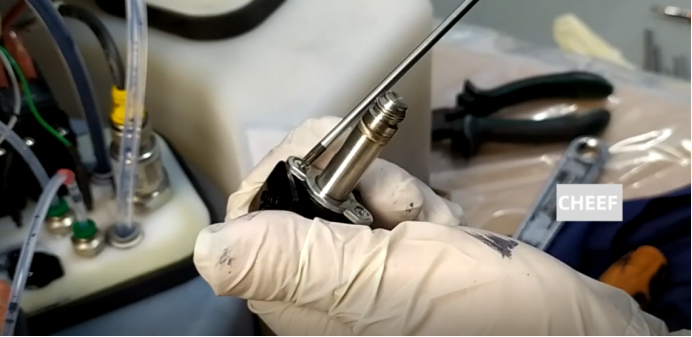

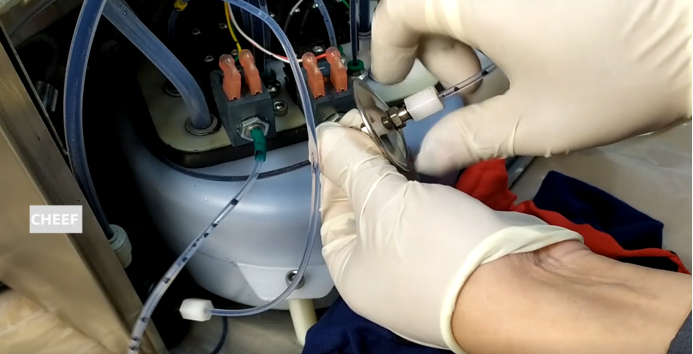

Then there’s a plum screw here, and we take it off. So we removed the solenoid valve.

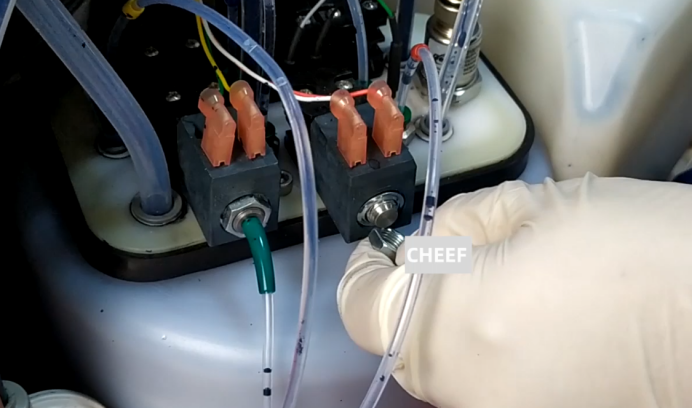

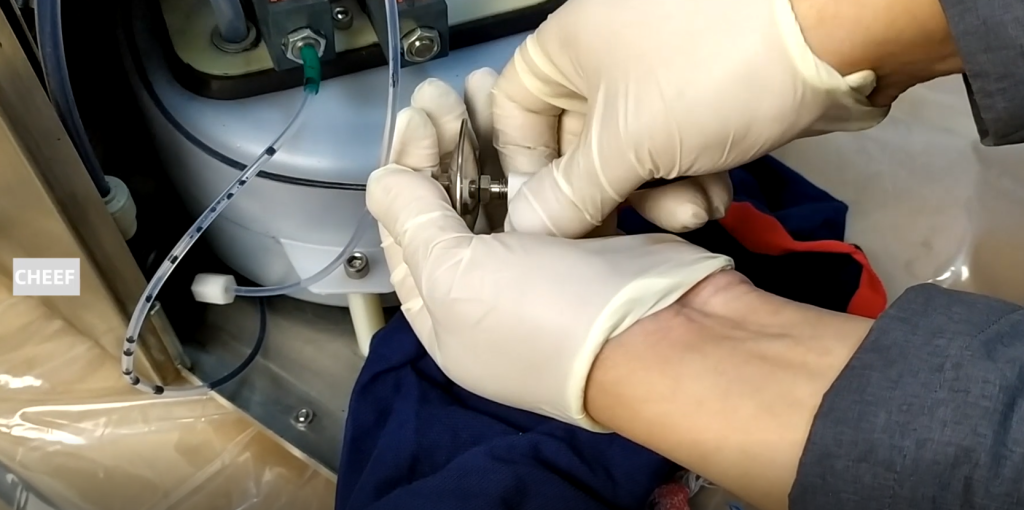

After removing them, there are two new screws here, and we can also remove them.

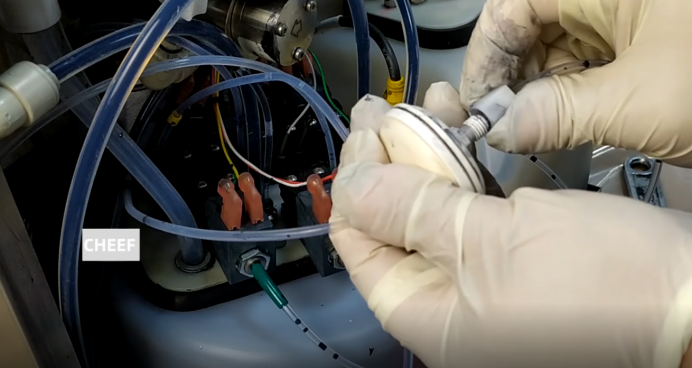

If the valve is stuck, the valve will not be broken, will only stick. If it sticks, we can take it down. Then wash this side all clean on the line, a little flush, the valve core is also.
How to remove how to install, accessories do not be less, and then tighten it.
