Let’s look at if the main ink box is removed, sometimes, our valve here we are not easy to remove.

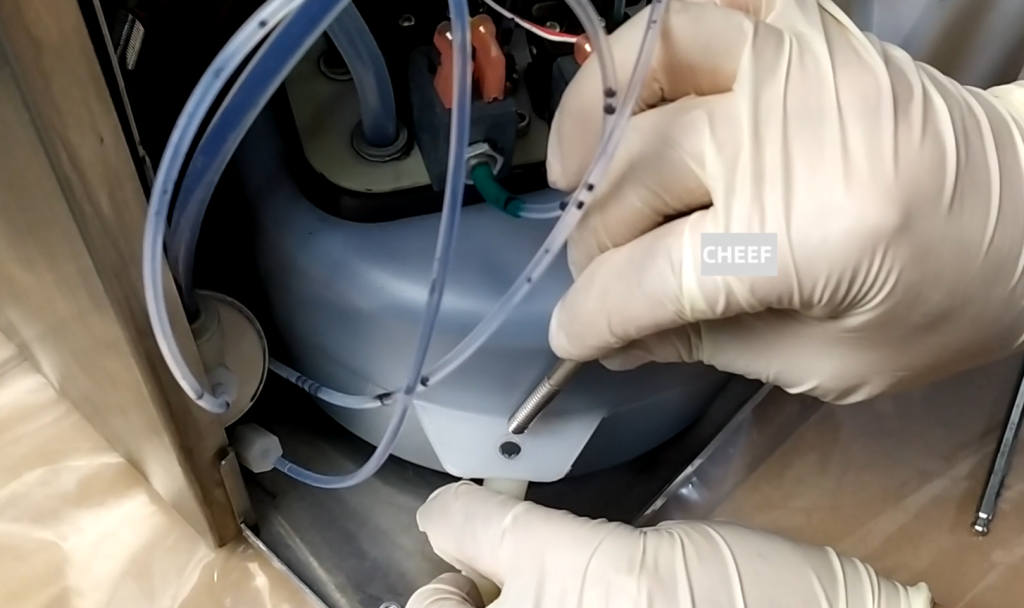

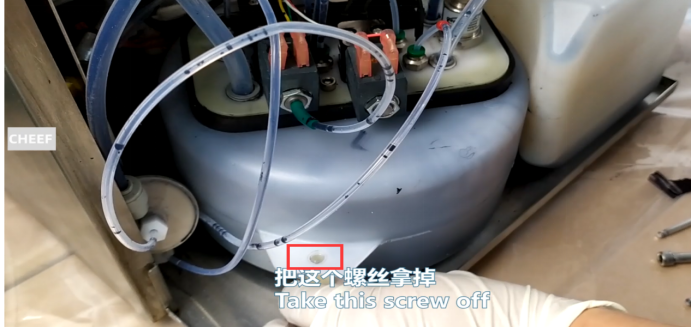

If we want to get it outside, we will have to remove the screw. Then we can lift the machine up to take it out. In this way, we can dismantle which one that we want.

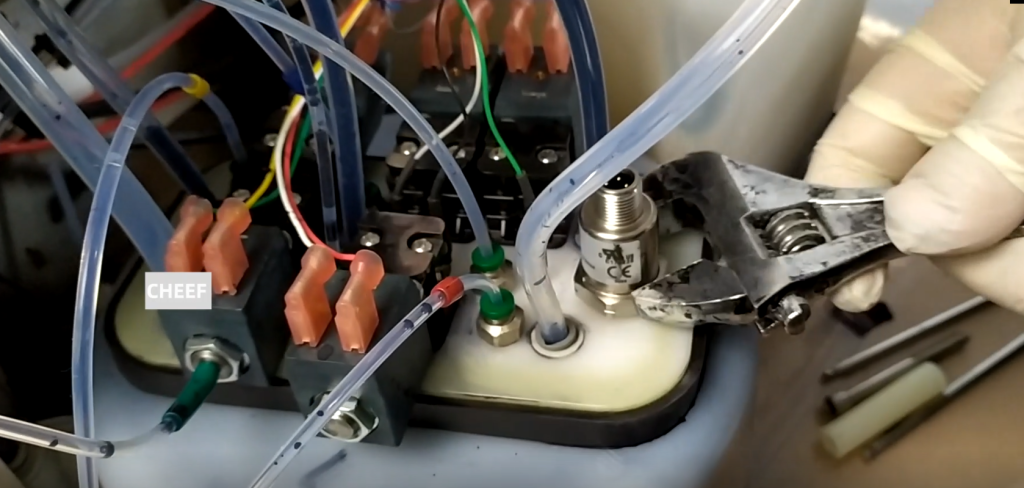

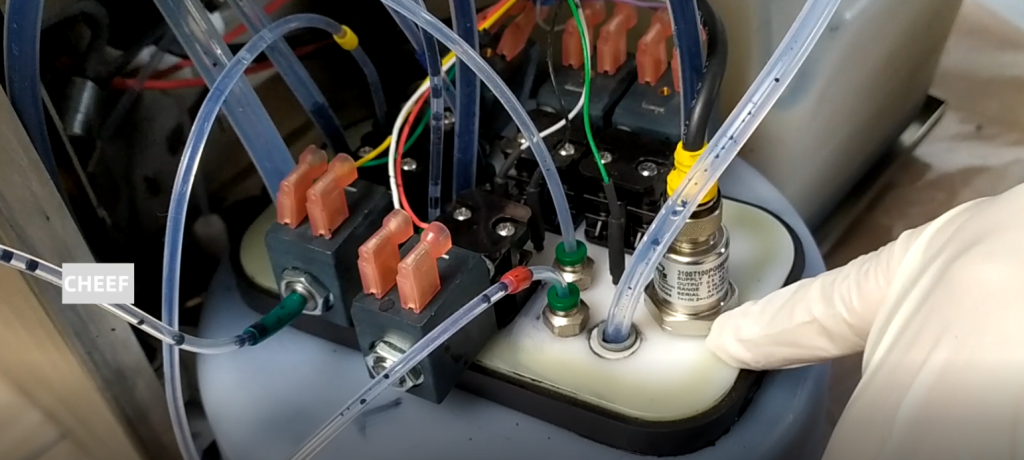

Then look at how to remove the pressure sensor. The pressure sensor is simple. spin it off.

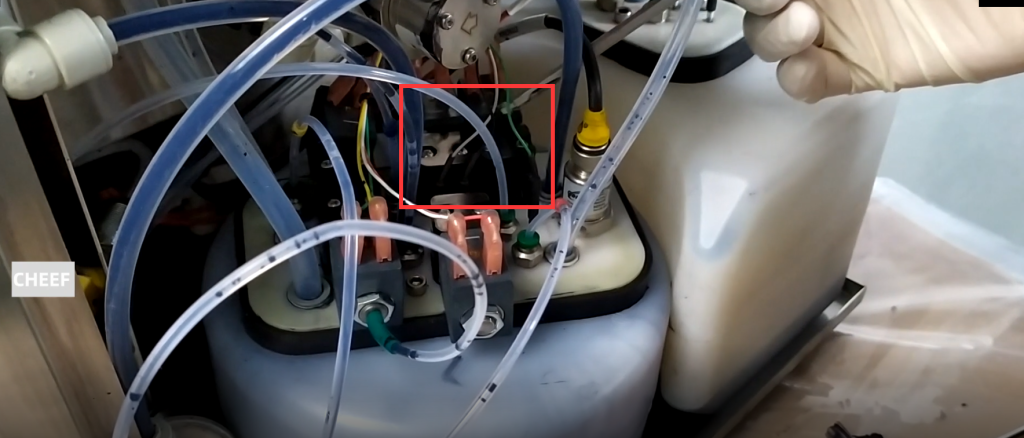

When we remove the pressure sensor, we first have to spin off the above line.

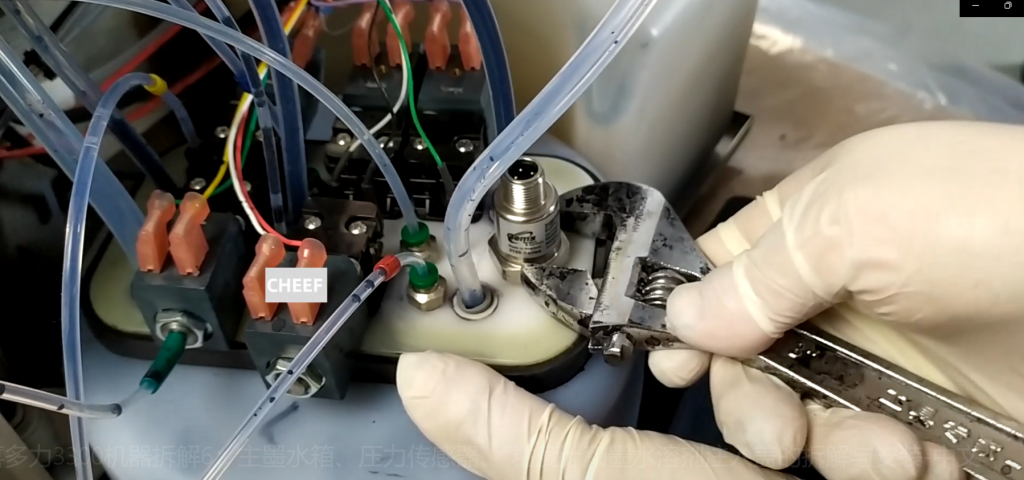

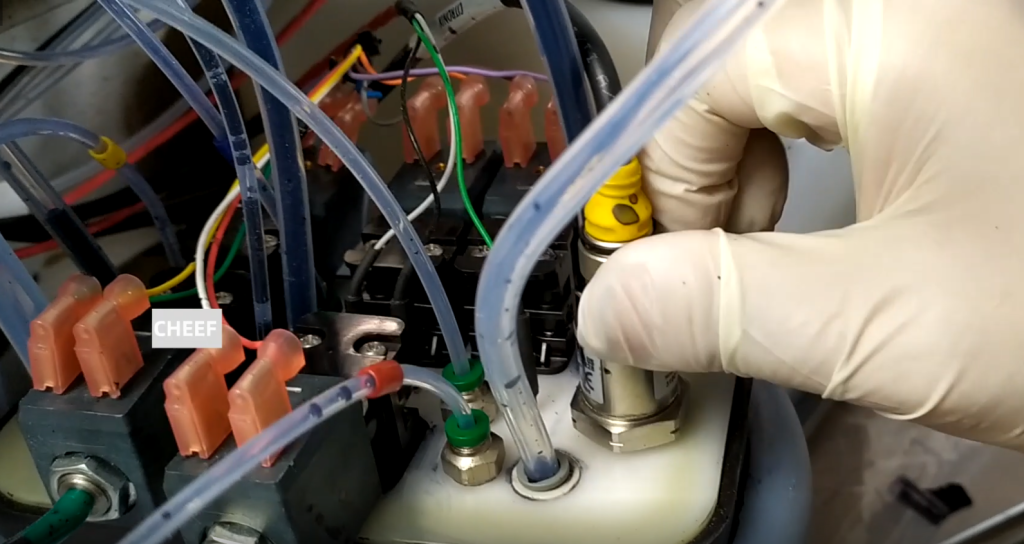

Then we dismantle this again, and we take a wrench and twist it.
We install the same is true, how to remove how to install. Let’s put it on again and get a new one. Tighten it tight or it will leak ink. Be careful to be sure to tighten it down.
Then we put the original wire head in again. We have removed the pressure sensor.
Let’s pack up the original one again.

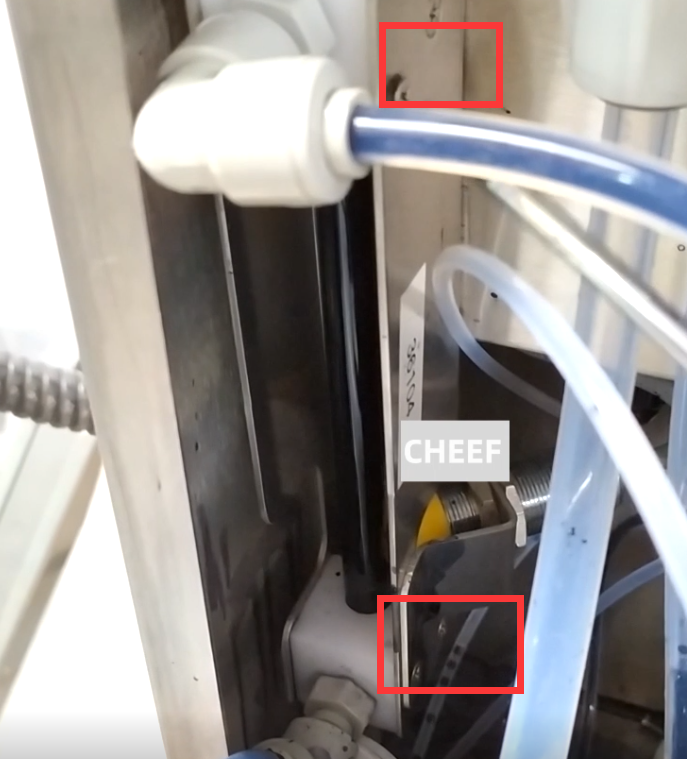

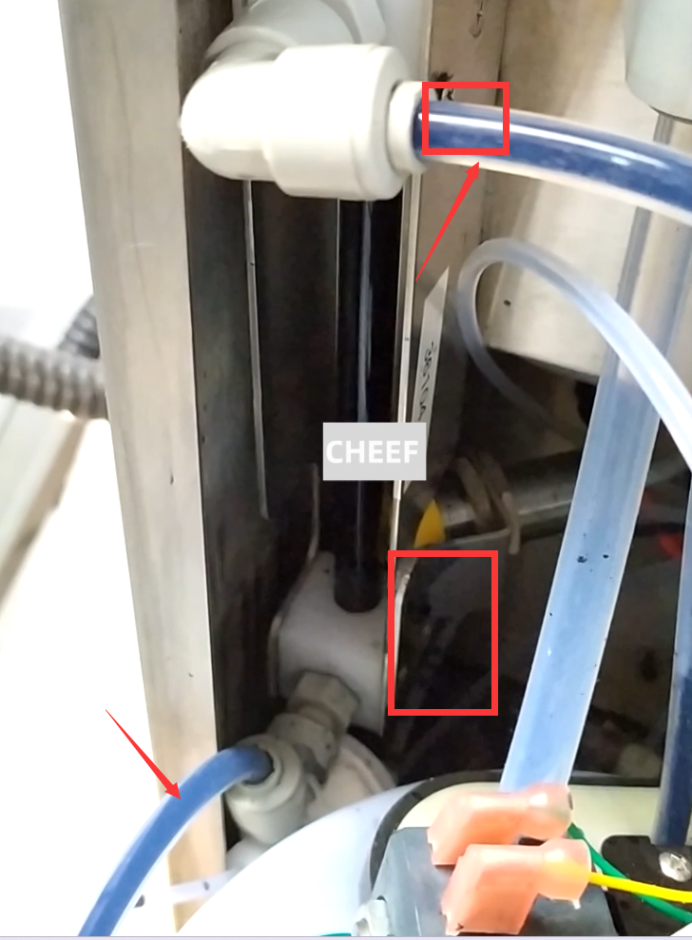

This viscometer, if we remove the viscometer, we just need to remove the pipe, and the pipe below it. Once removed, spin off the four screws above the viscosity gauge, and two of the bottom two. If we spin it off, we can remove the viscosity meter.
The installation is the same, put four screws to it, which requires a long plum knife.

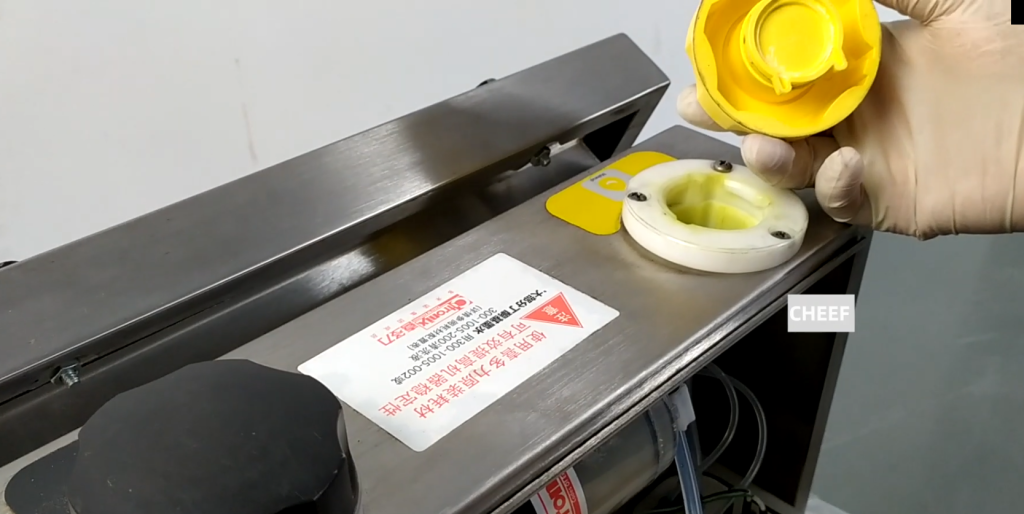

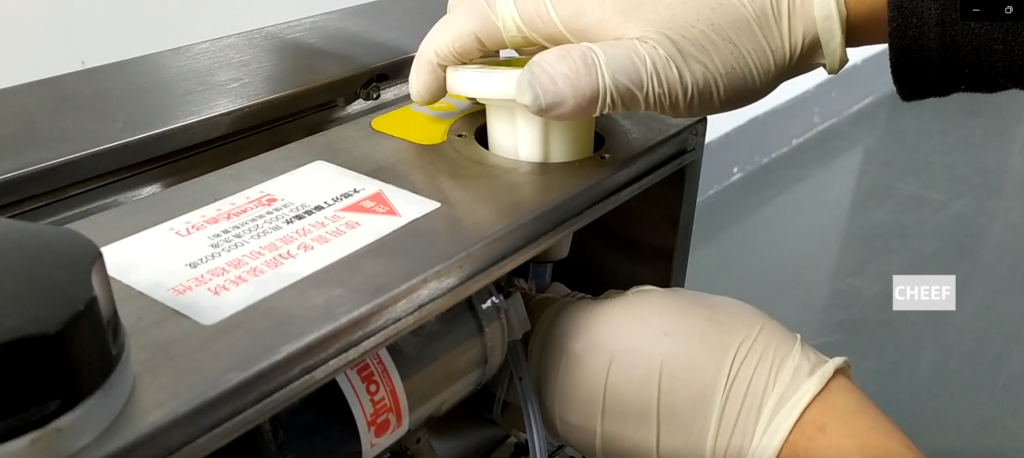

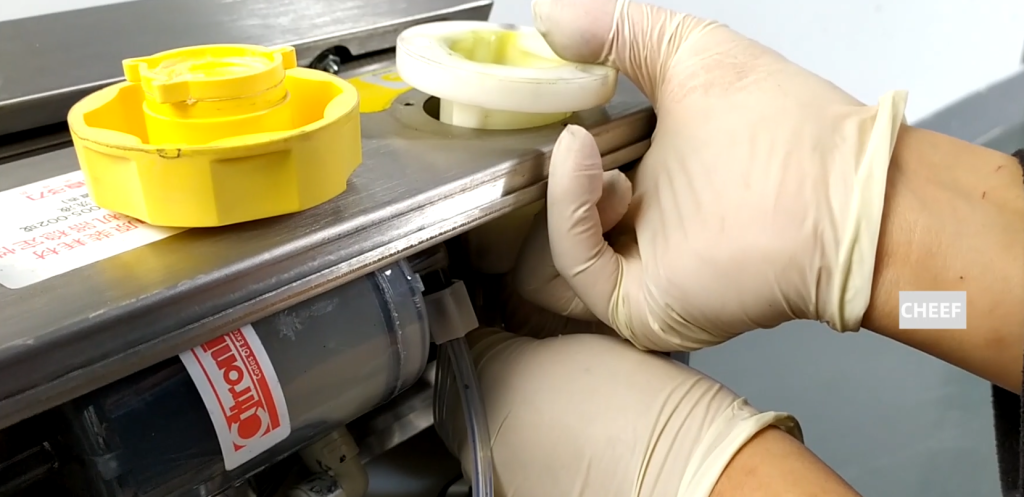

These two are the solvent injection lid and the ink injection lid, let’s remove a solvent injection cap, they are the same. This is the solvent injection cover assembly, and this is a set of. Then we see how to remove, the lid is a spin off.

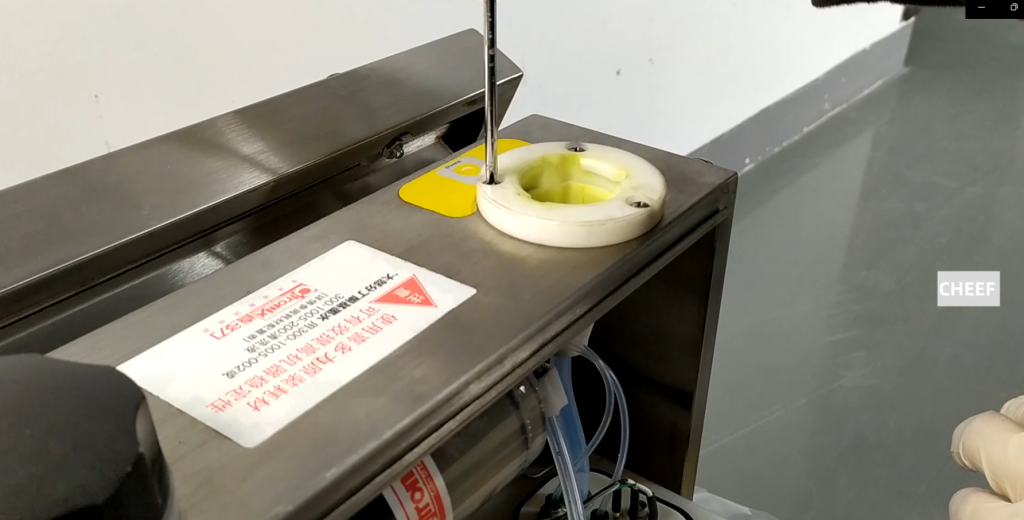

Then we spin off the top screws.

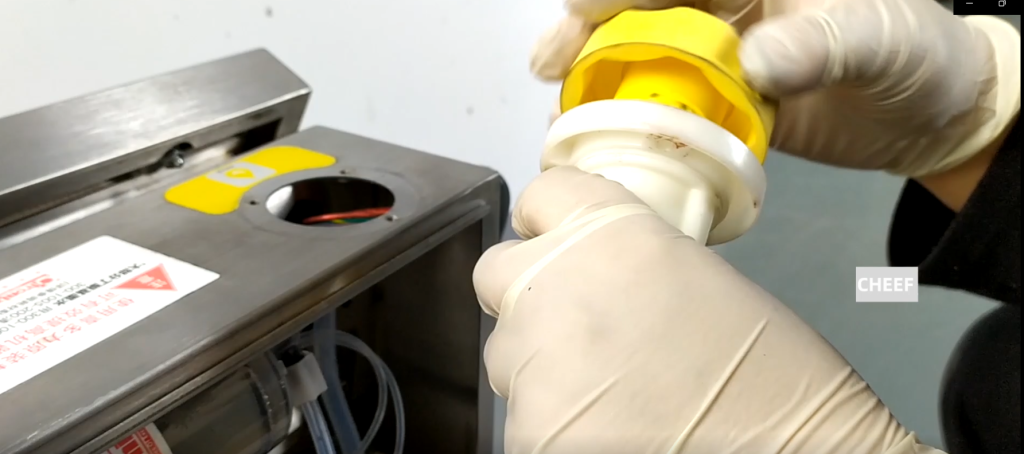

After the screw is removed, there is a thick pipe under it, go out by hand, and the lid will fall off.
You can get this set out, which is the solvent injection cover component.
If we do, we put it on and then put the tube into it.
After plugging them in, we put the screws in one by one.
