Let’s take a look at the Citronix CI3000, its parts, and disassembly and assembly:

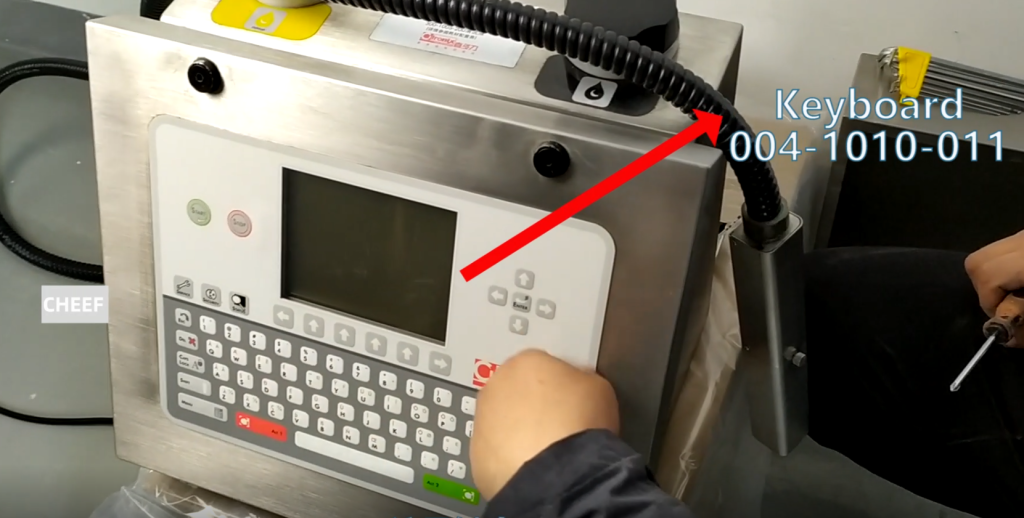

Then we open the front lid

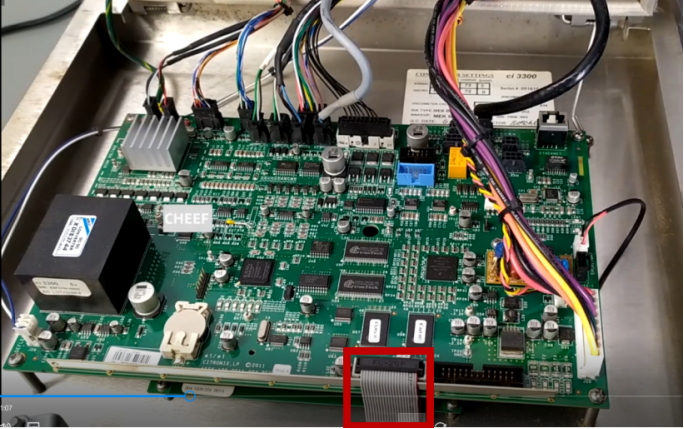

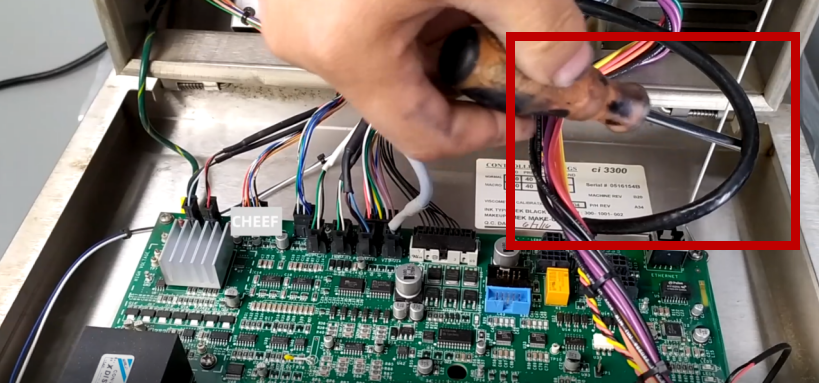

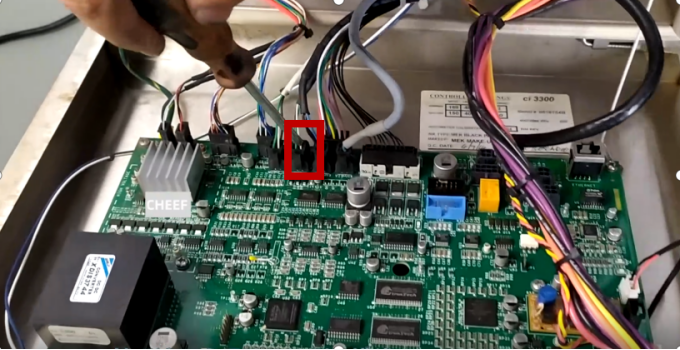

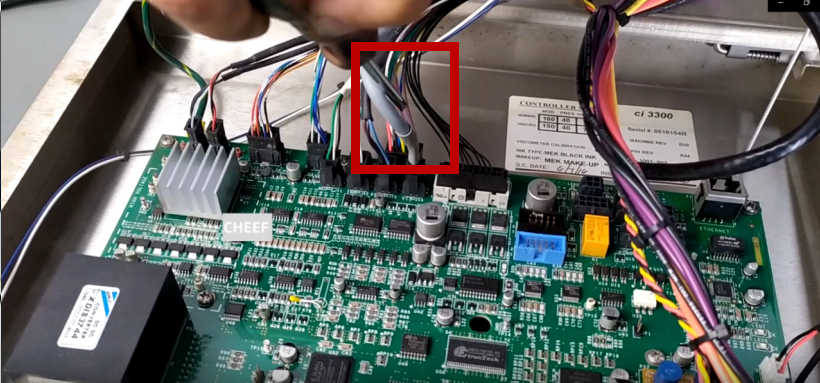

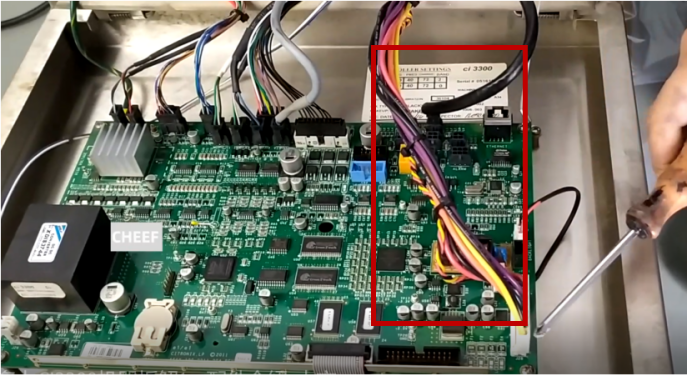

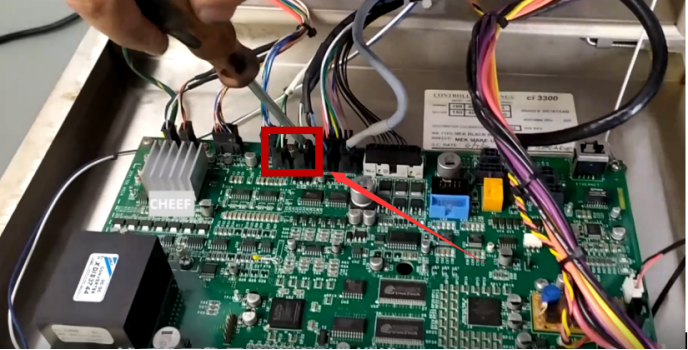

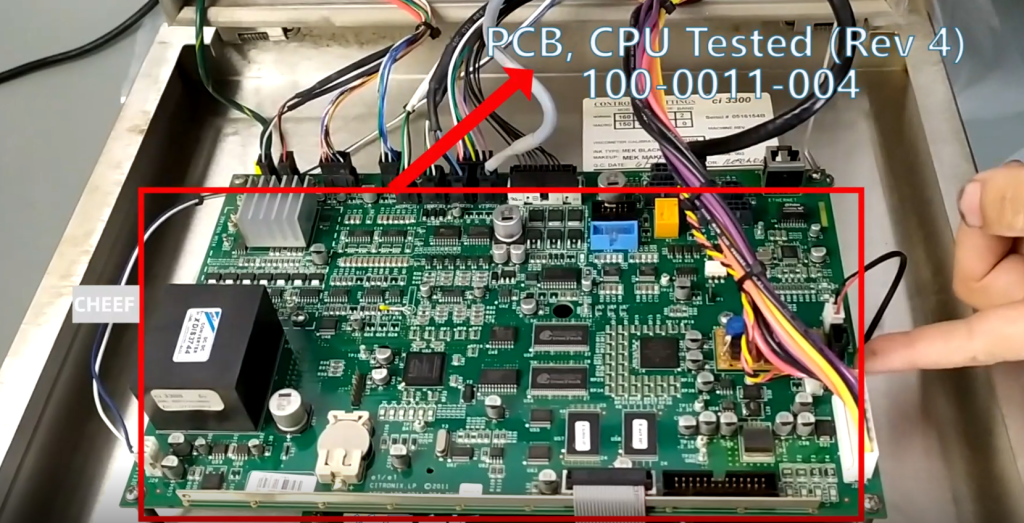

Here are the board’s lines:

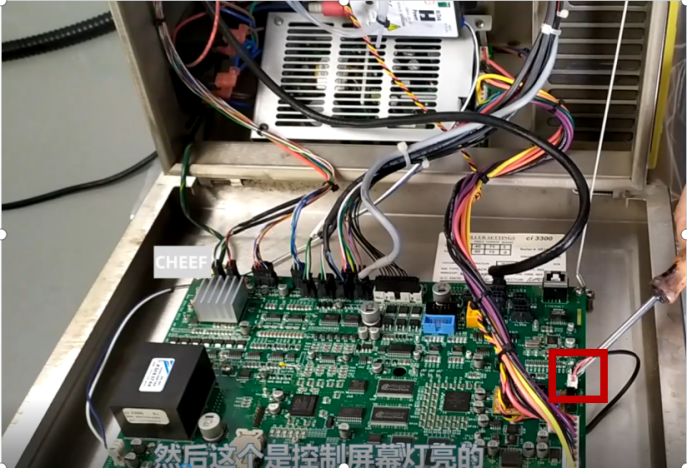

This is what controls the screen lights:

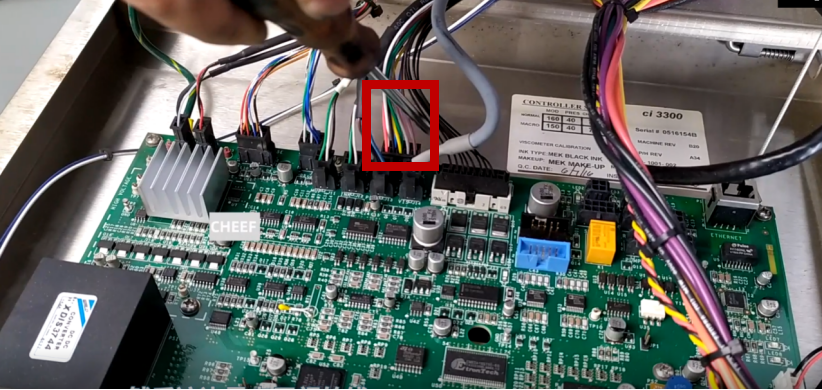

The cable that controls the data displayed on the screen:

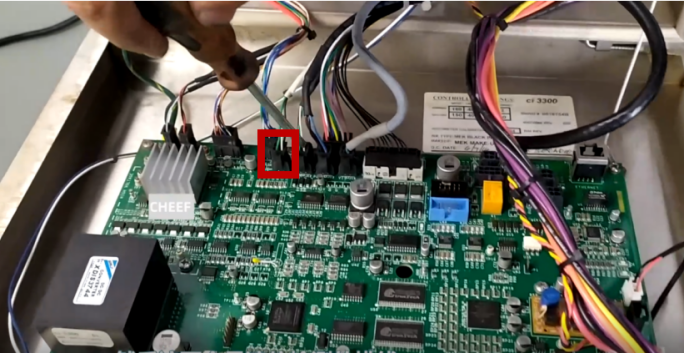

Then these two are the cables for liquid level detection:
Cable for ink level detection:
Cable for solvent level detection:

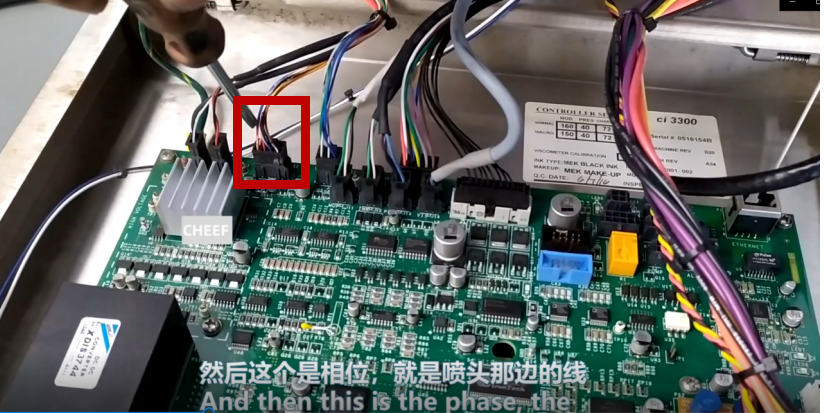

Then this is the phase, which is the line on the side of the nozzle:
Then here is the line of the electronic valve:

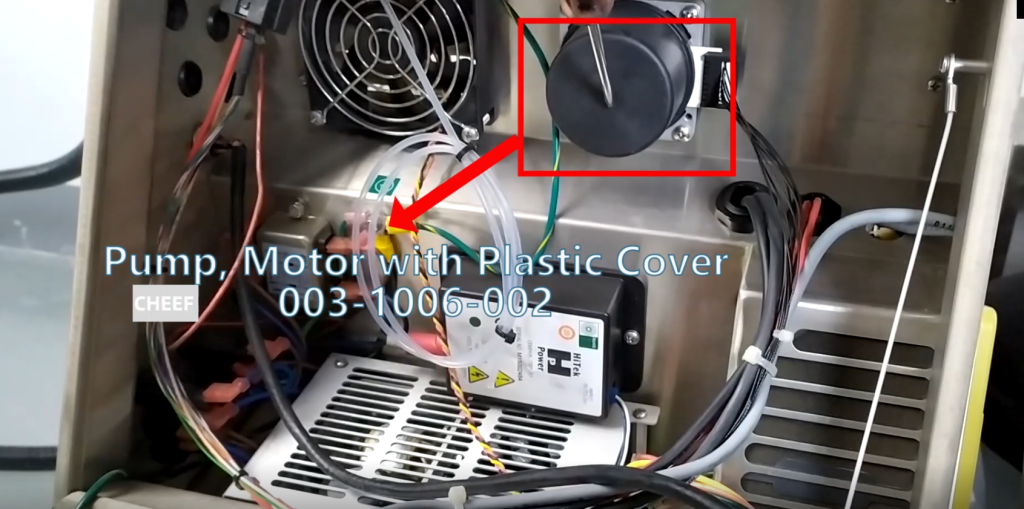

Here are the wires for the motor:

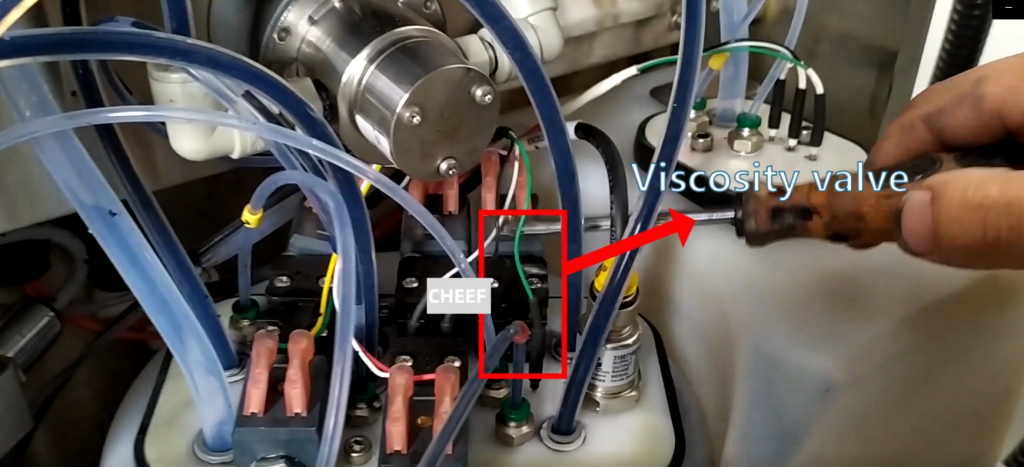

And then this gray line is the viscosity agent line:

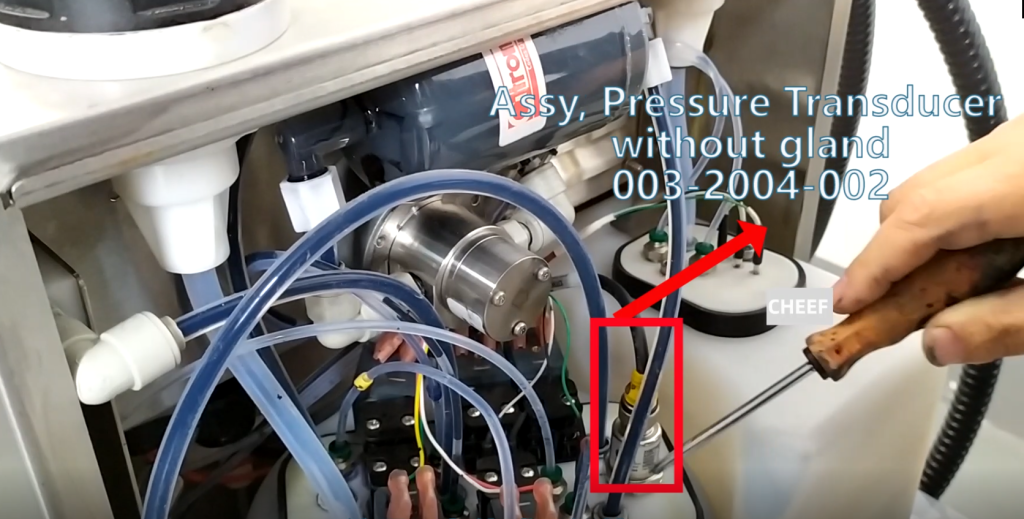

This black one is the sensor wire:

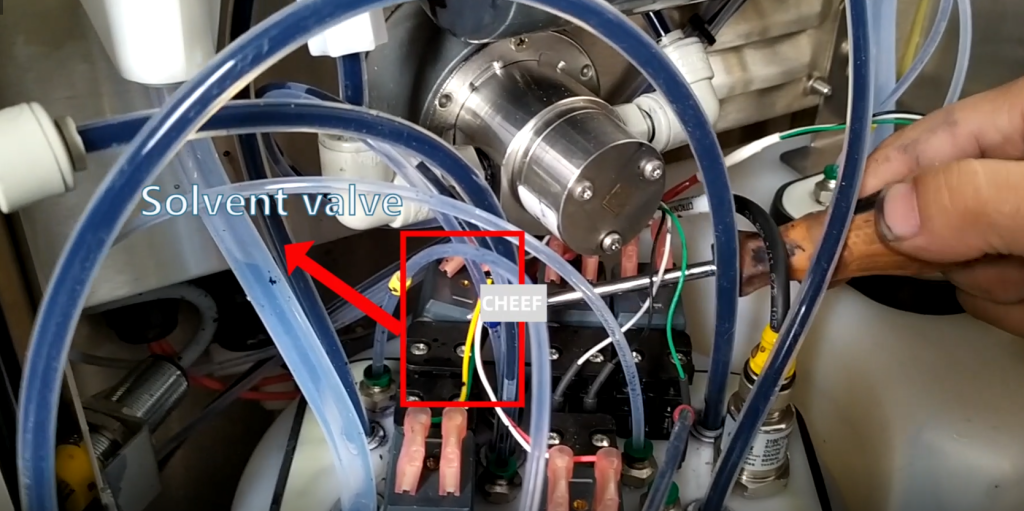

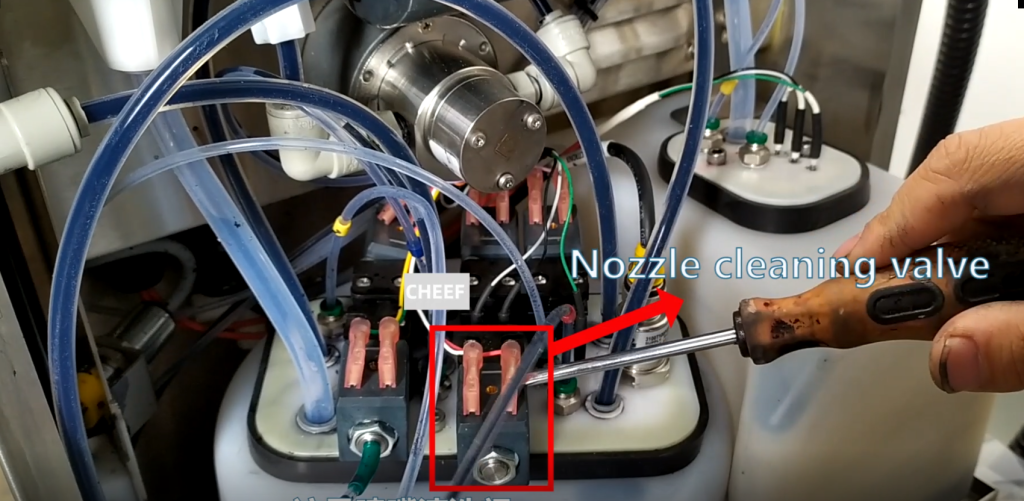

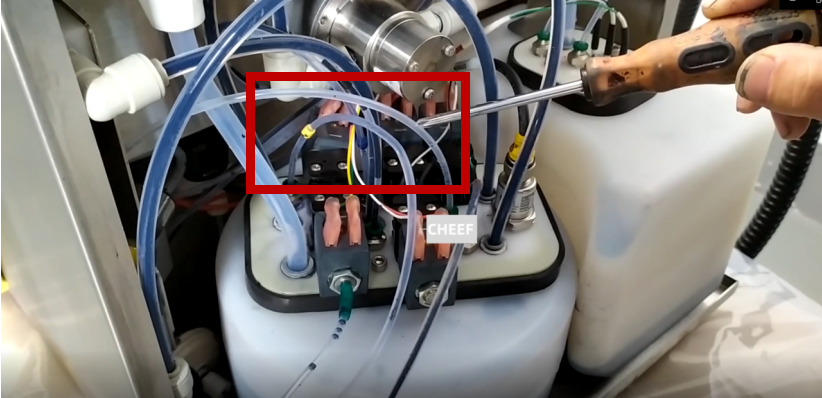

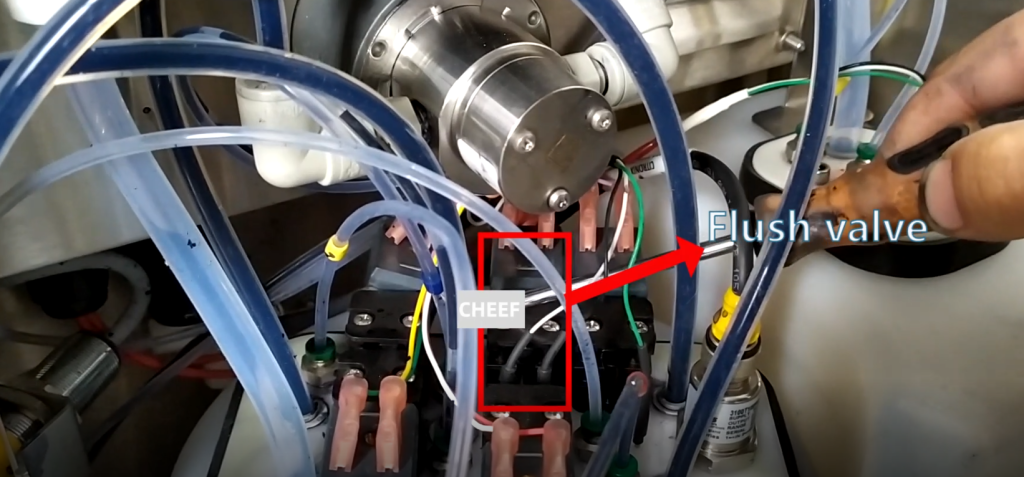

Let’s look at the back,These are electronic valves,Let’s take a look at this electronic valve:

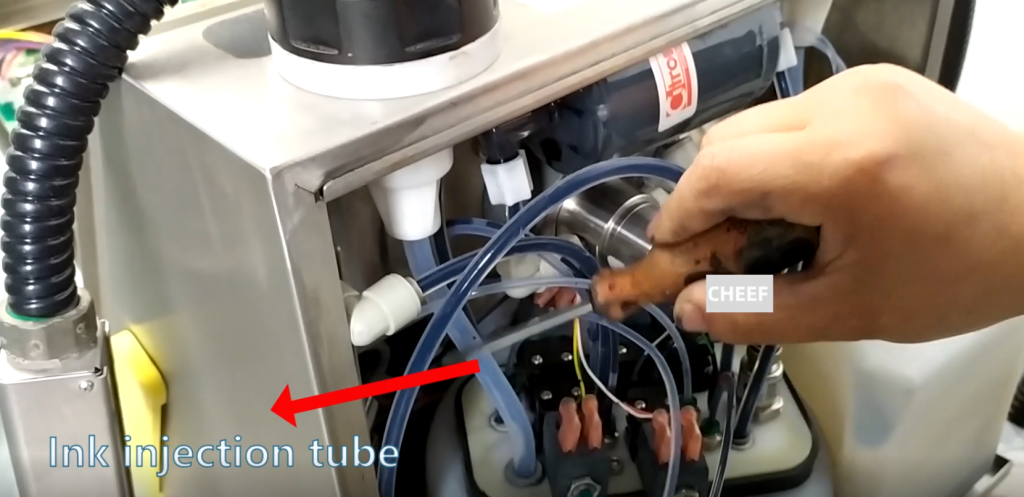

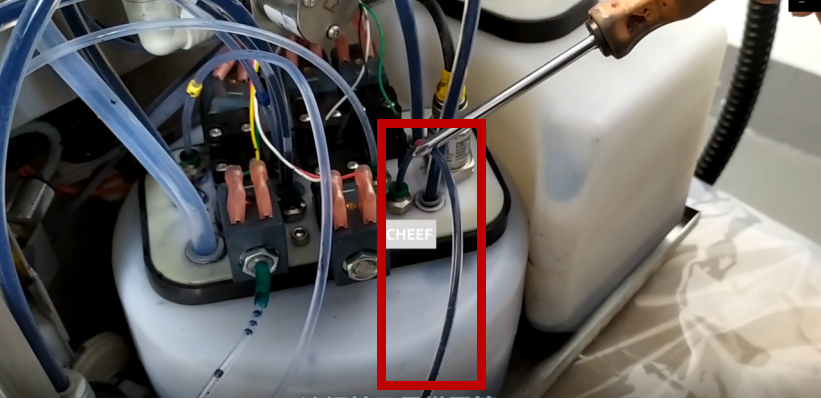

This tube is for ink:
This is the ink supply tube for the ink filter:

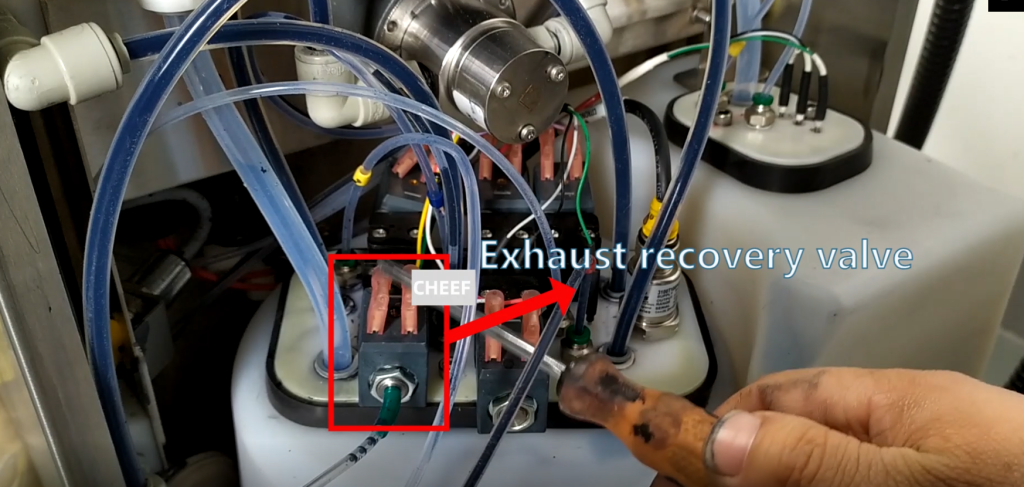

Then this is a valve that picks up gas:

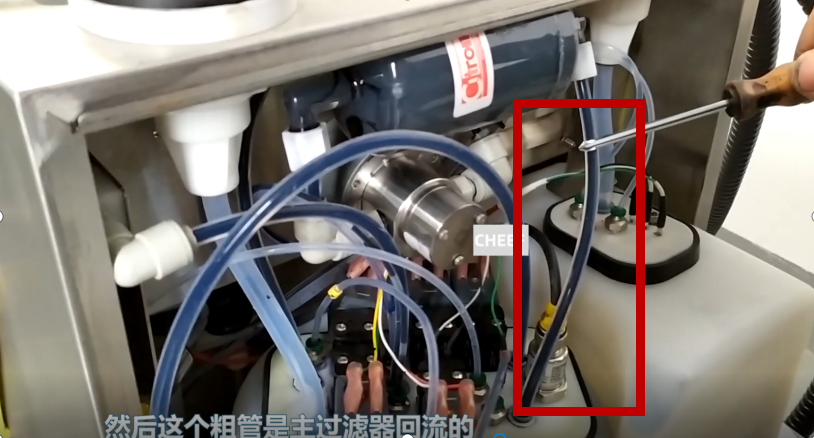

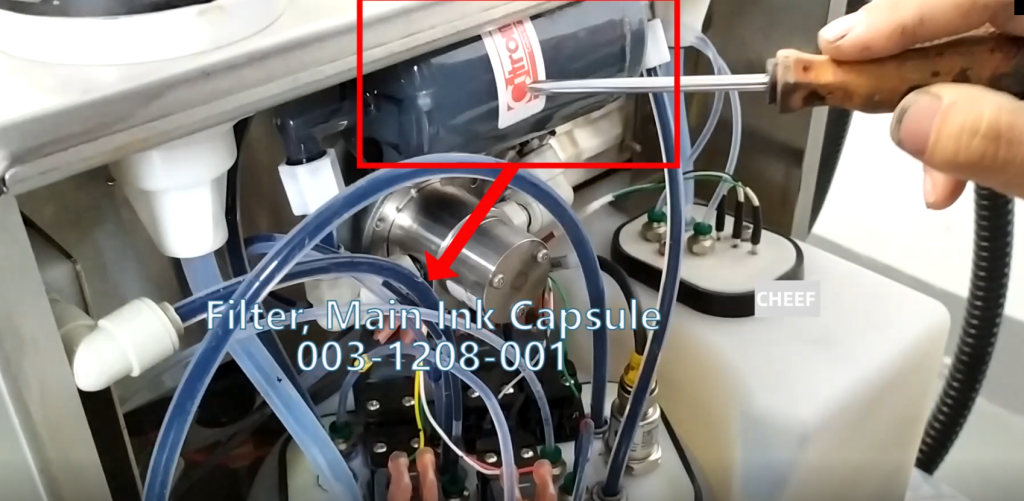

Then this coarse tube is the main filter return tube:

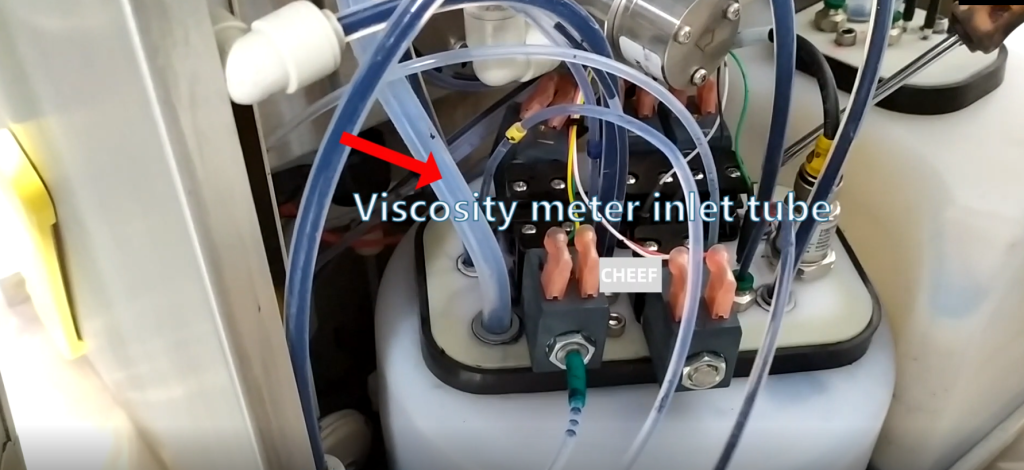

Then this one is the viscosity meter return tube:

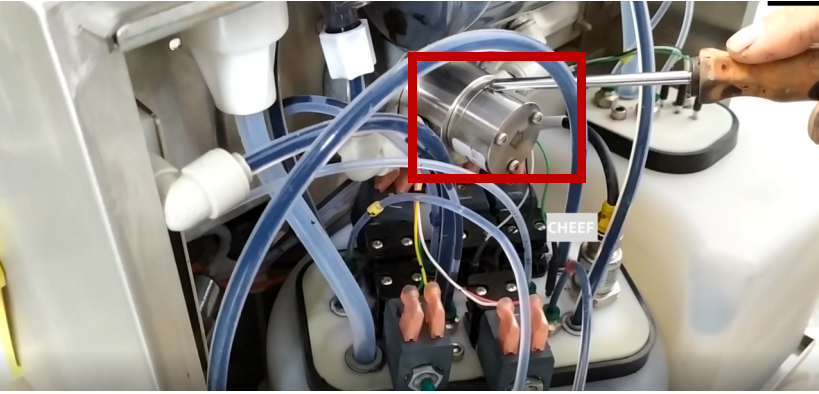

This is the pressure pump:

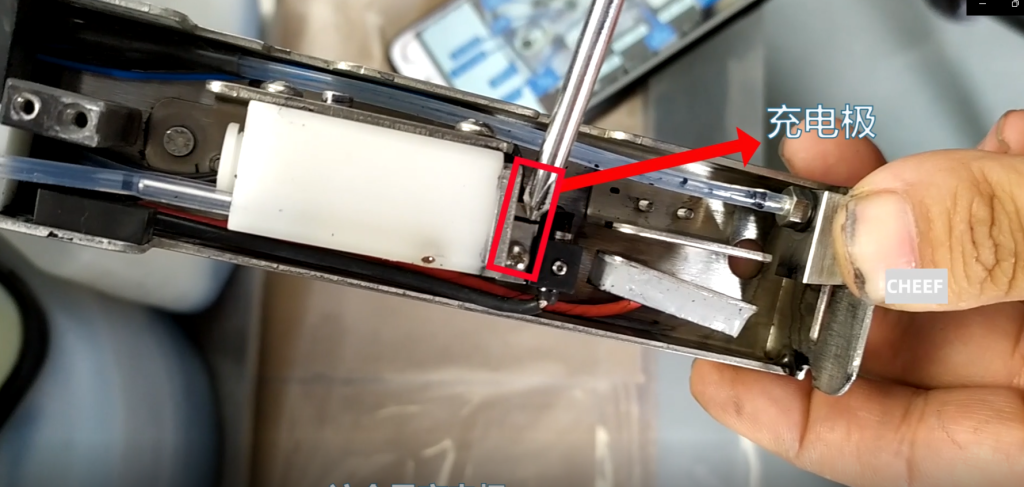

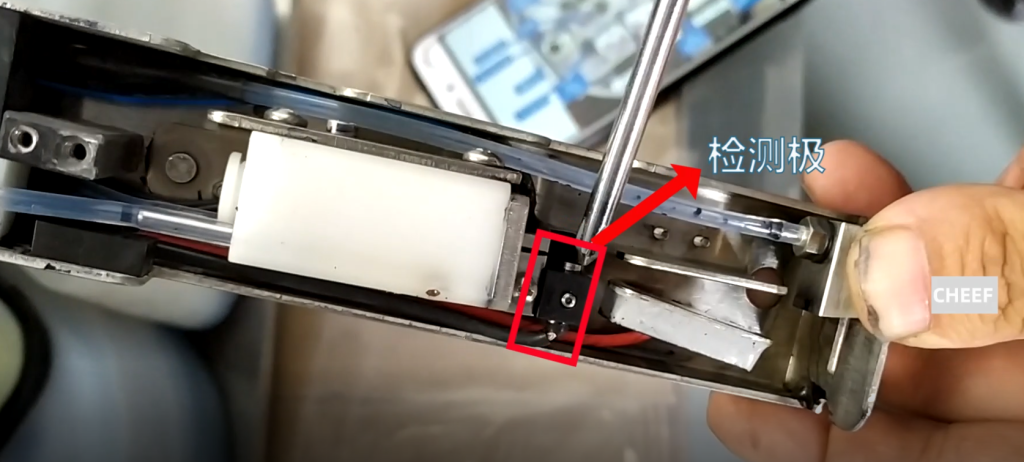

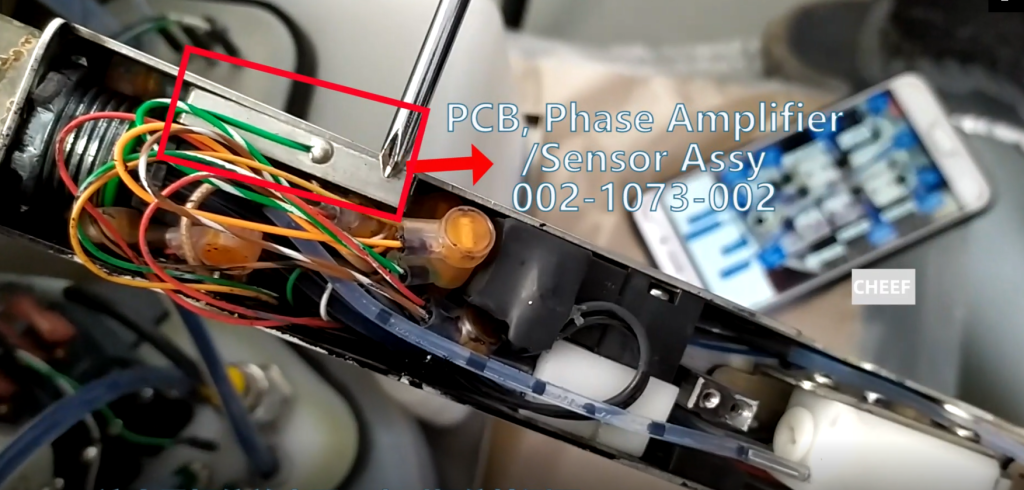

Then we look down at the nozzle side,This is a phase amplifier, also known as a phase detector:

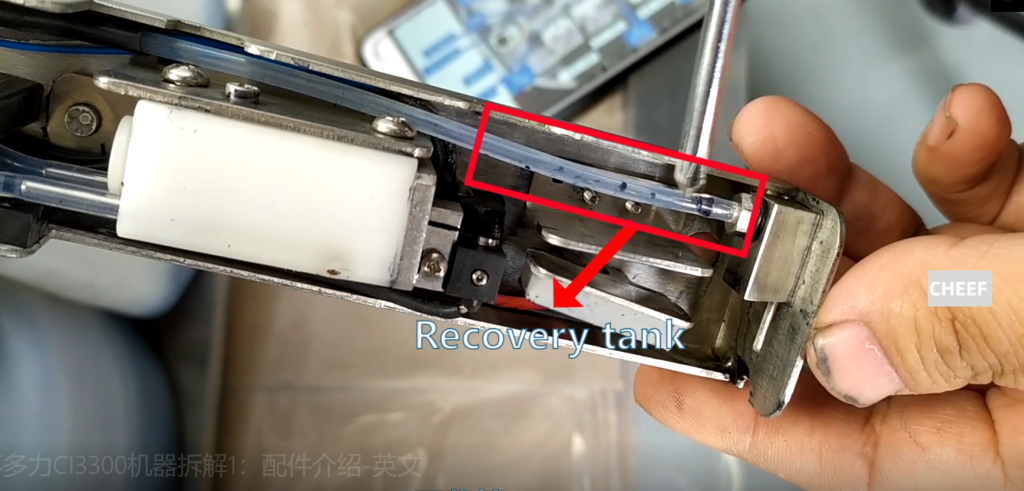

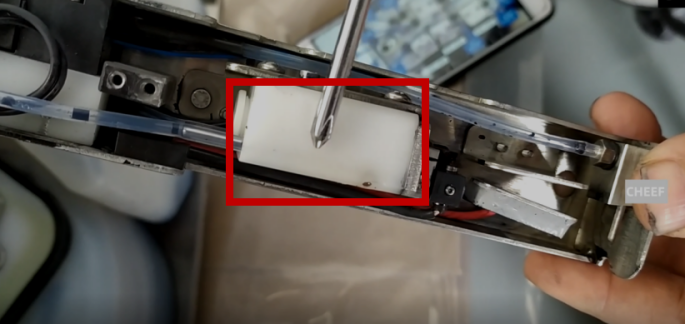

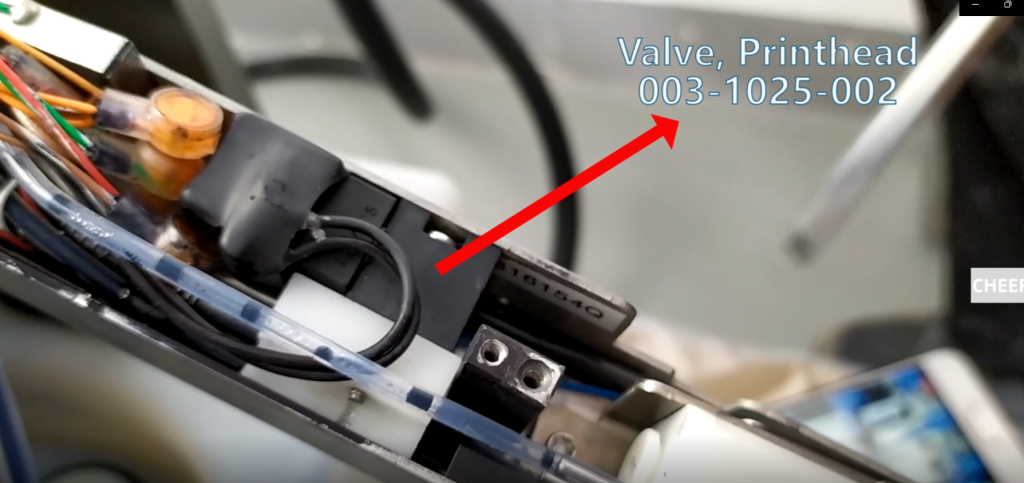

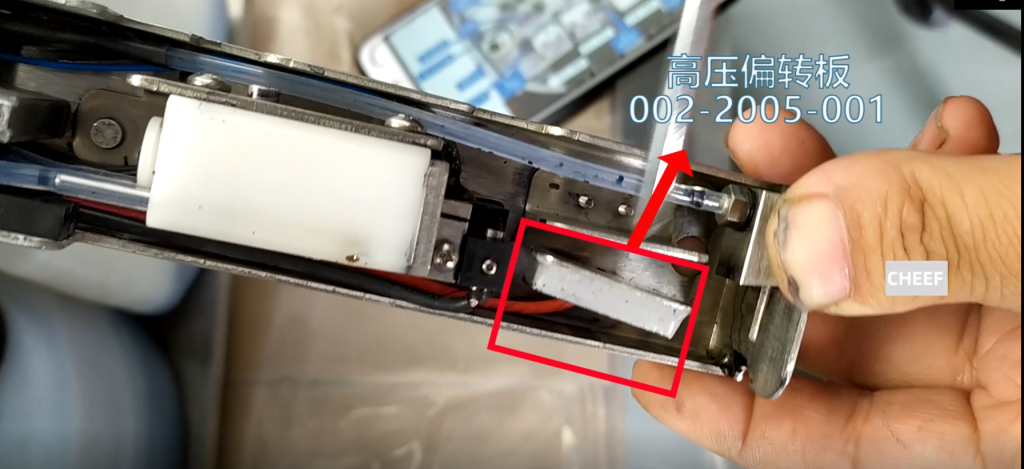

It is a gun:
