How to remove and install the high-voltage deflector of the IMAJE 9232/9410/9450 inkjet printer?

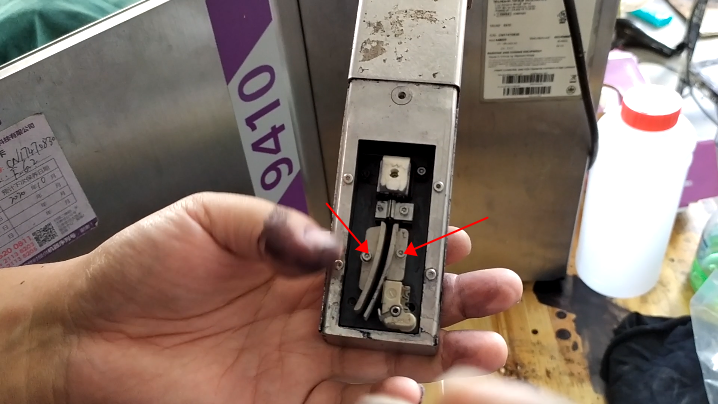

Remove these two screws and be careful not to lose them:

When installing, put the high-pressure deflector on one side first, and then install the screw:

Install the high-pressure deflector on the other side:

High-pressure deflector should not be installed the opposite, its two screws must be tightened.
