Maintenance of the new white ink machine 9- Replace the main filter – Pay attention to the current limiter in the pipe

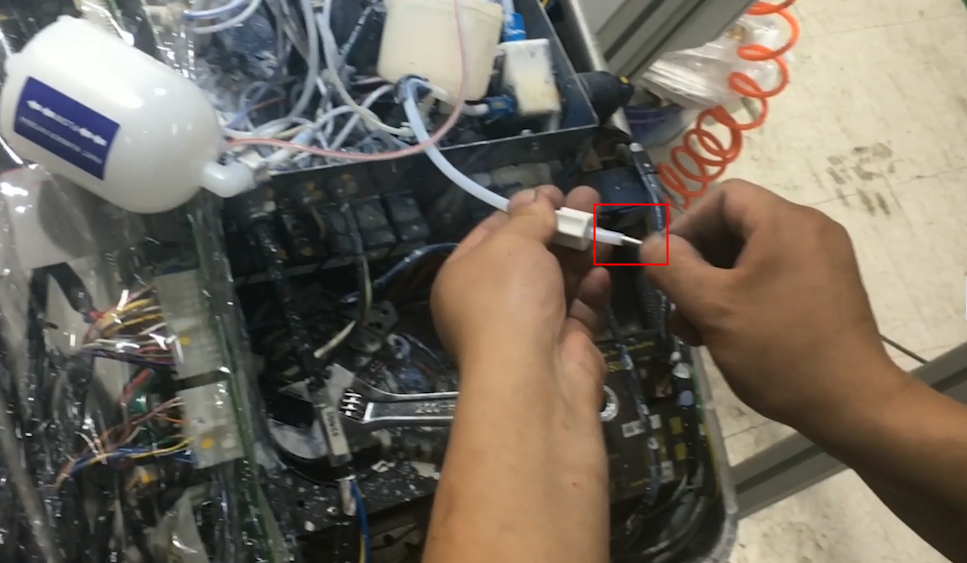

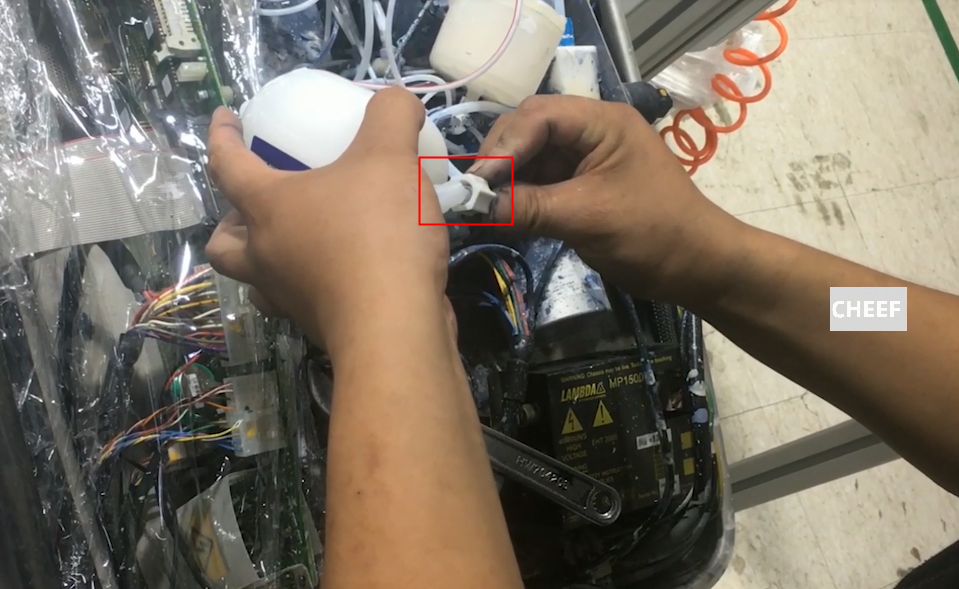

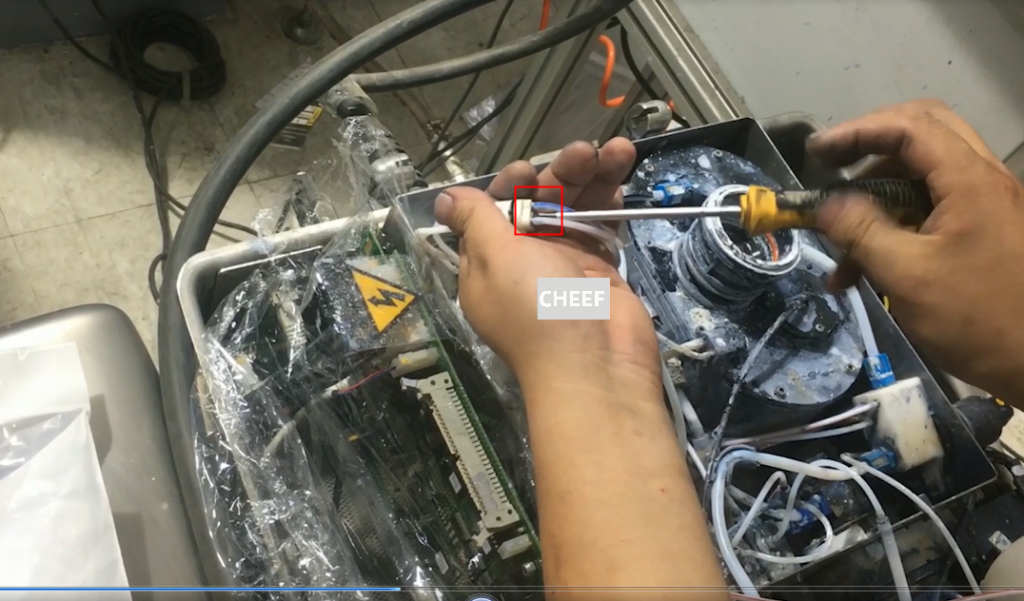

Install the current limiting tube

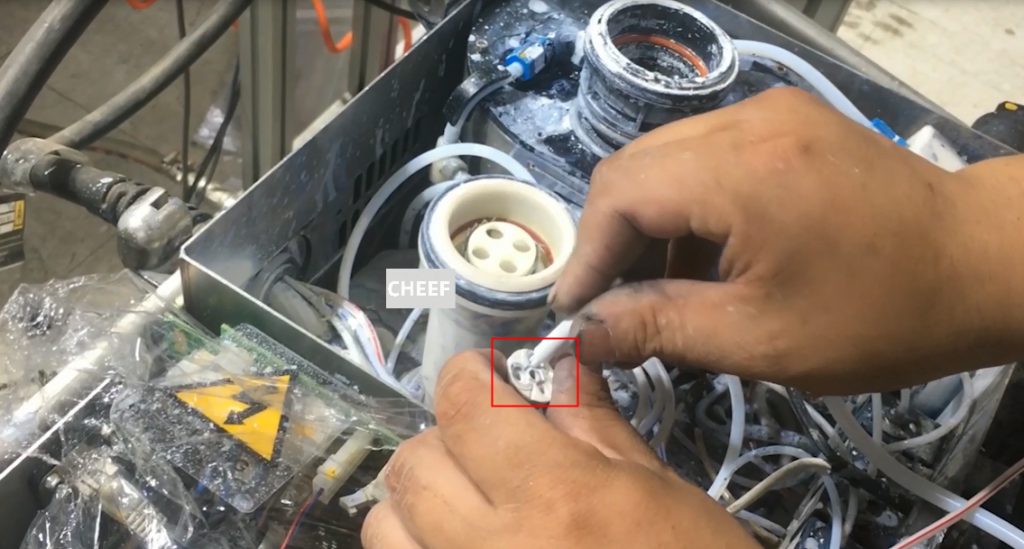

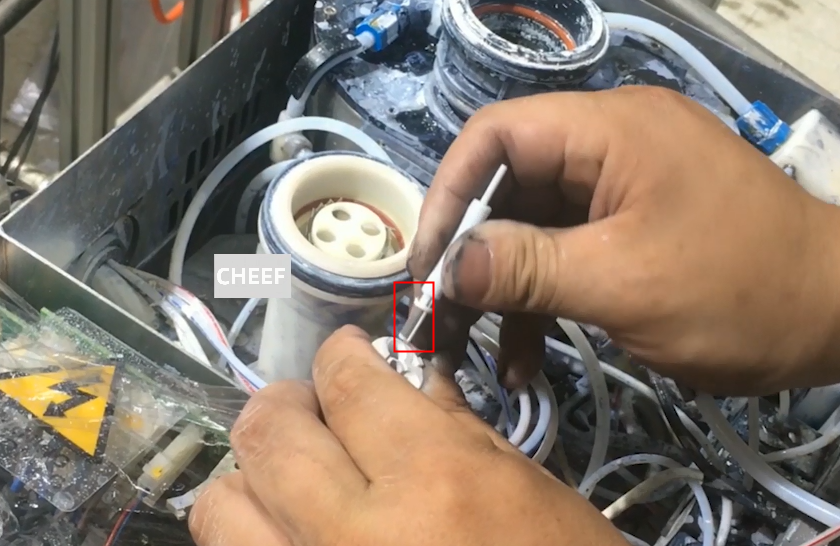

Try to pound the tube into the inside of the filter as much as possible, and then tighten the nut on the outside, it will naturally lock tightly. The main filter is now replaced

Now switch to an online three-way filter

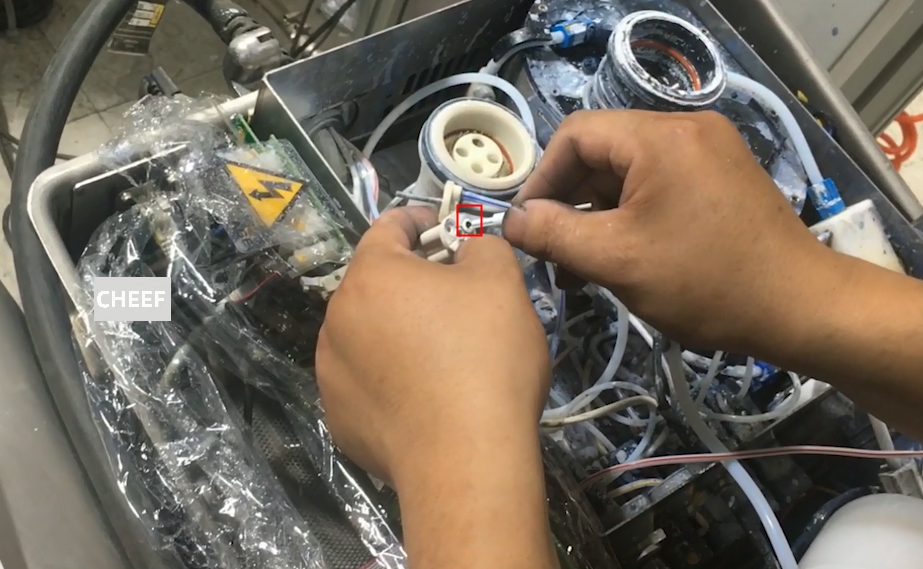

Find the red pipe,

Take out the filter

Put the new one in

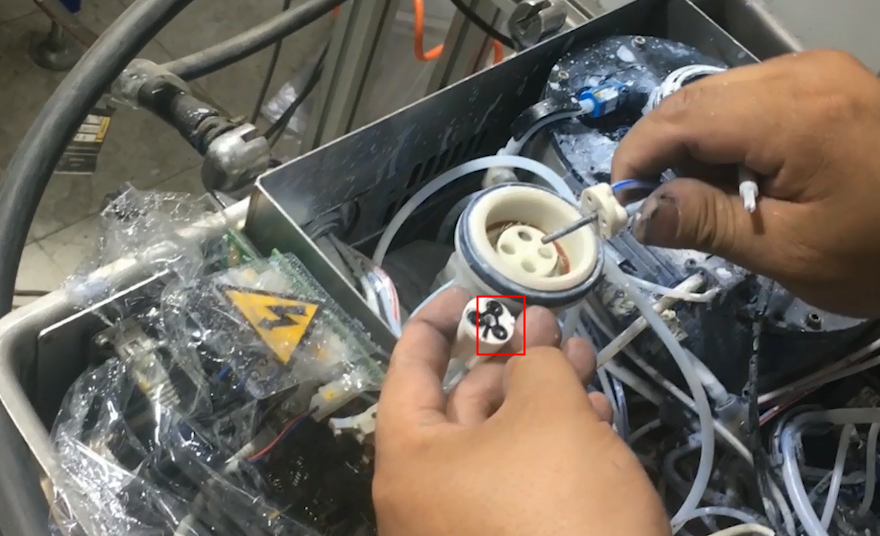

This gasket and O-ring must be present. If not present, there may be ink leakage if not properly installed

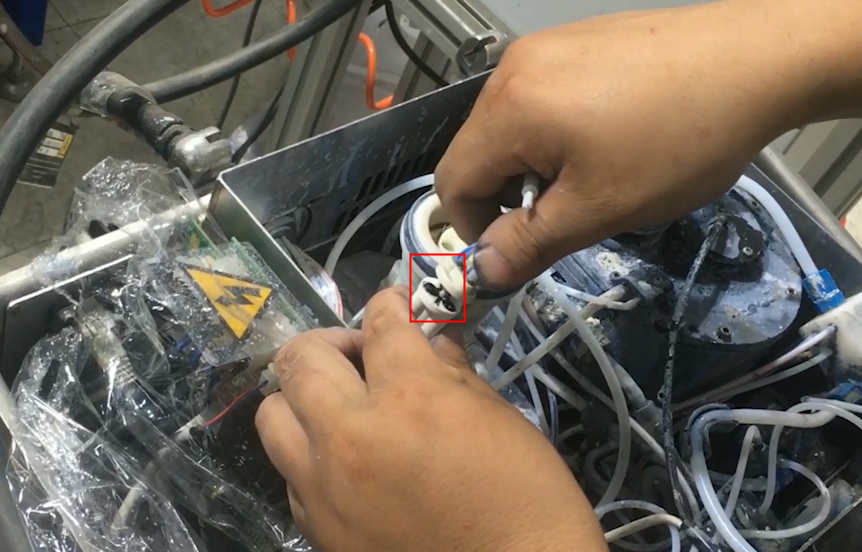

There is an interface, insert it according to the interface

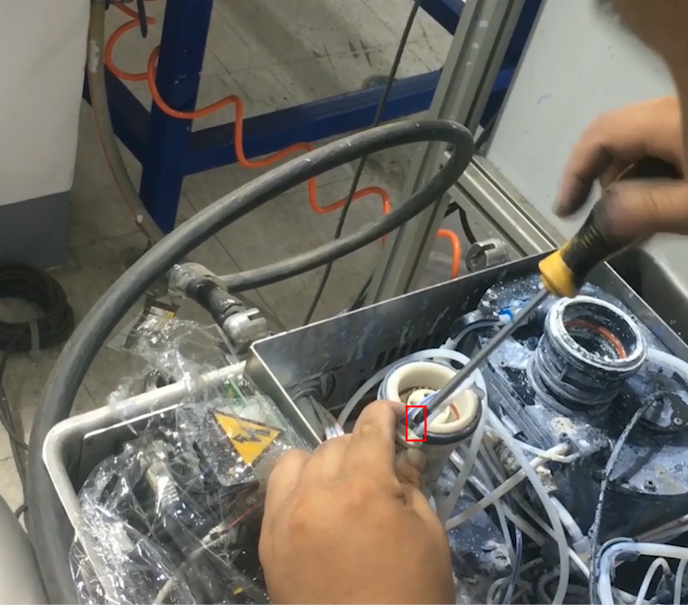

Then tighten the screws again
