This is a bracket for the nozzle
cable

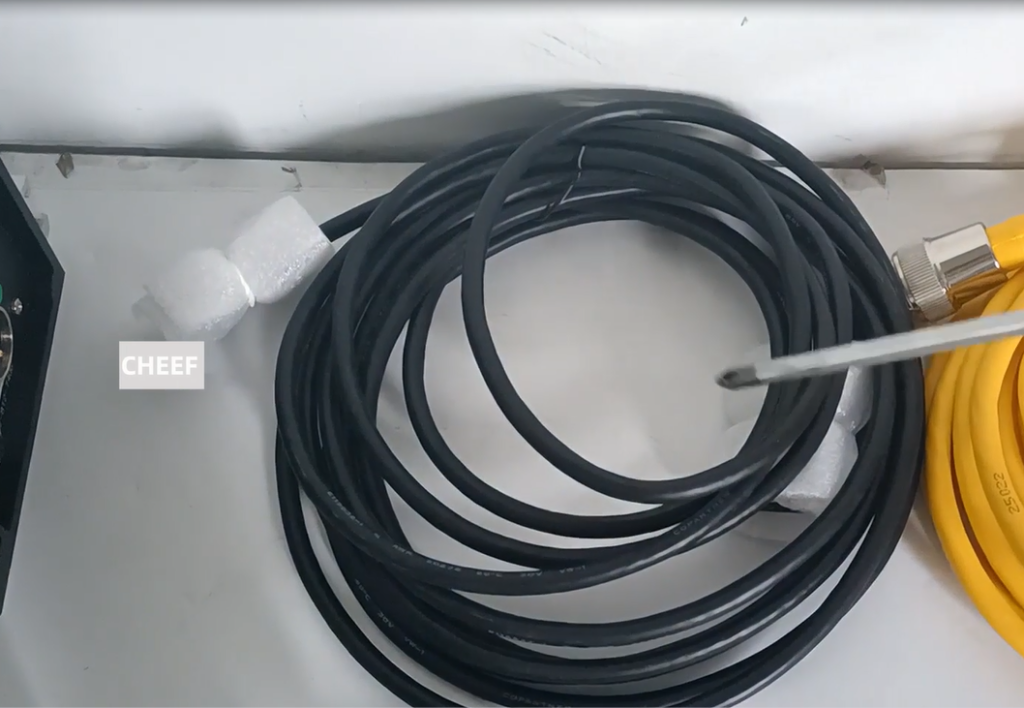

Data cable
Print head
controller
Anti-collision device
Power line
CD and instruction manual
This is photoelectric

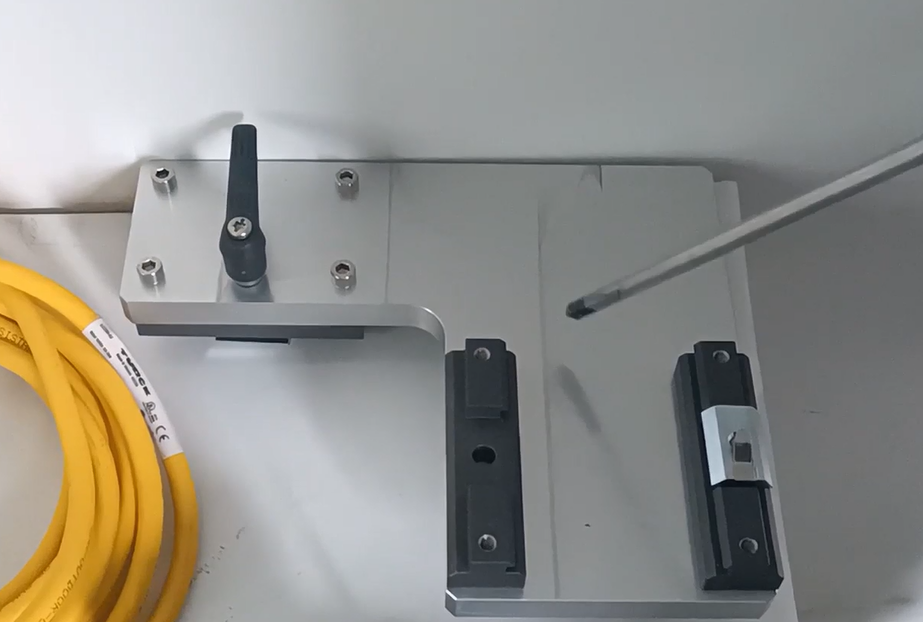

Controller bracket, which is an installation bracket

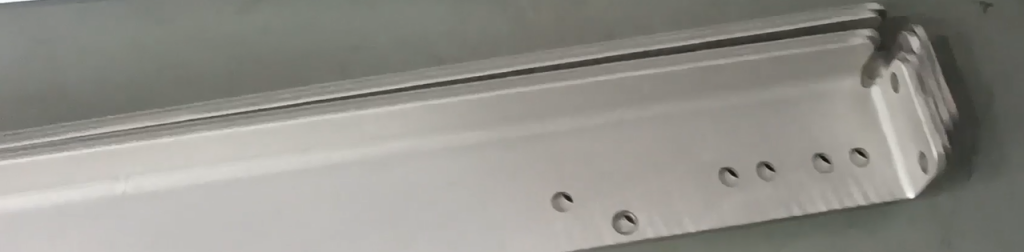

Column
This whole is called the installation bracket

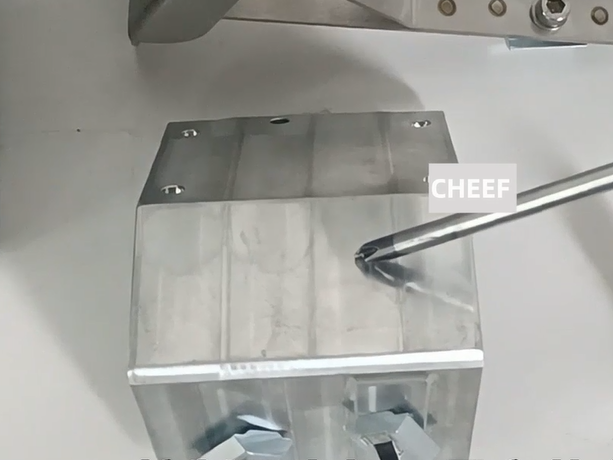

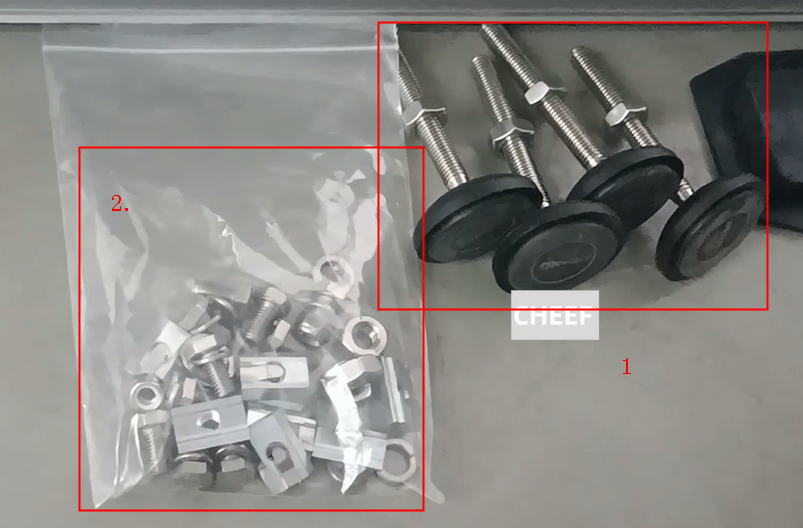

1. It’s a foot pad 2. It’s a screw
Let’s take a look at one of the accessories of the 5800 machine again

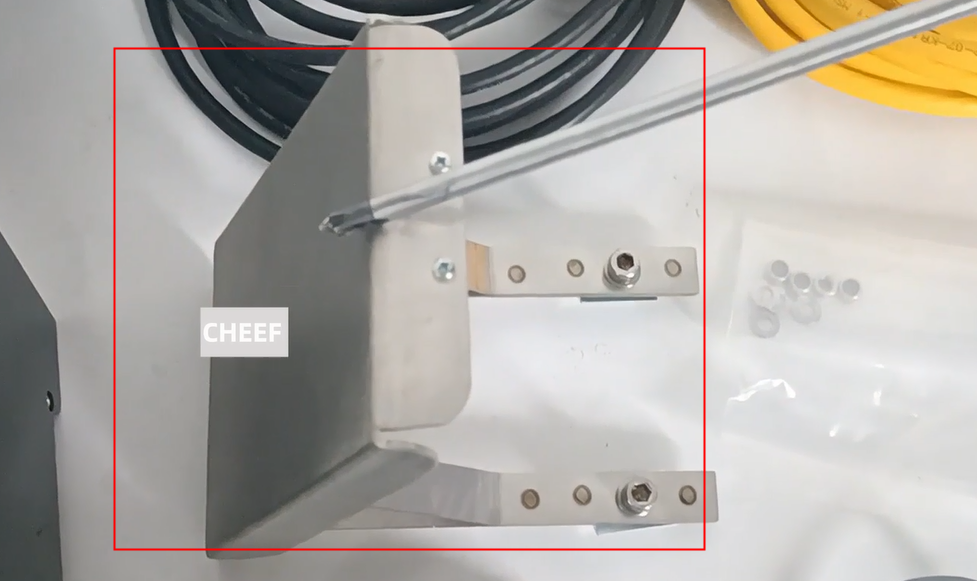

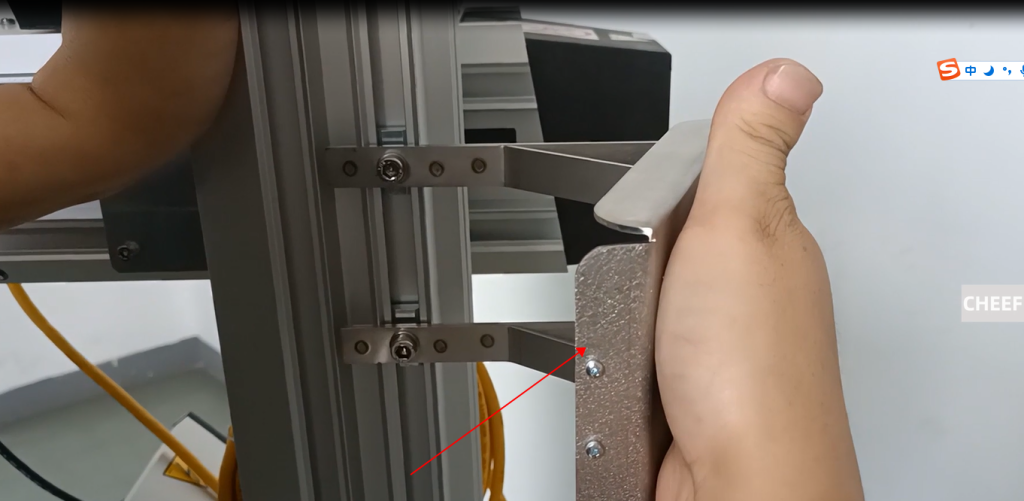

Firstly, our anti-collision component is mainly used to prevent objects from colliding with the nozzle,
So its installation must be longer than it, like this. Only in this way can it have a protective effect

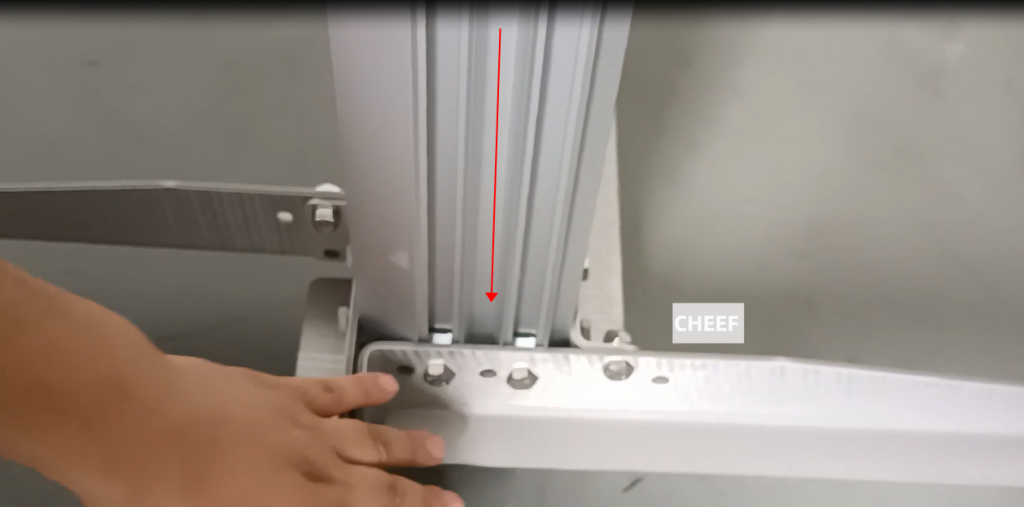

This is a mounting bracket that runs all the way to the end, and this is the entire mounting bracket

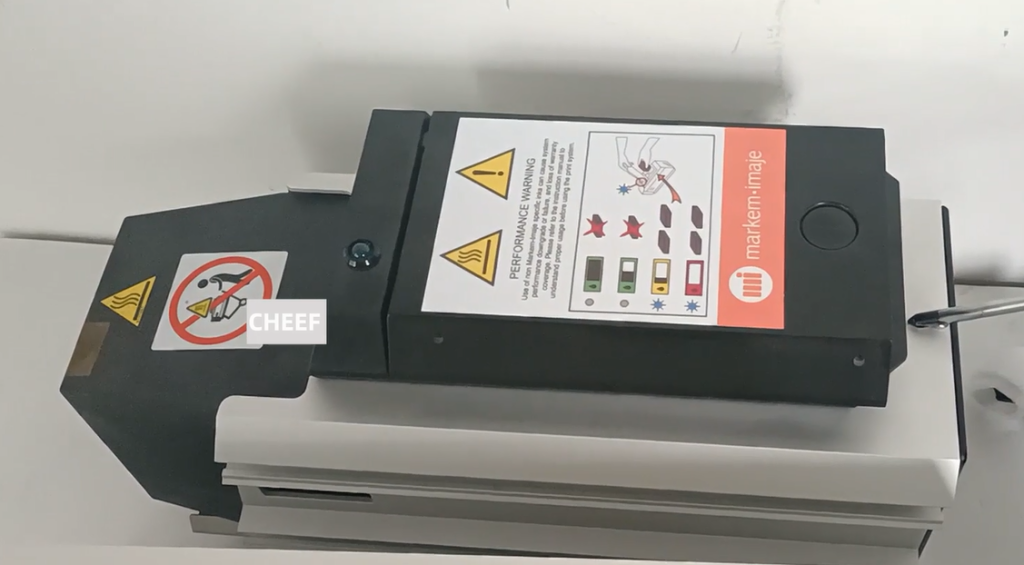

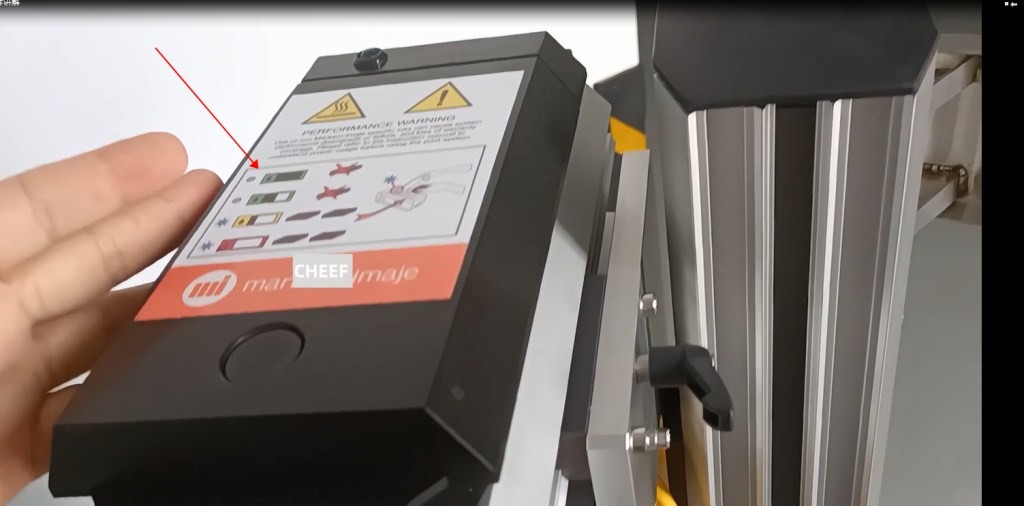

Let’s take a look again. This side is a printing head, and we call it the entire printing head
This is the print head mounting bracket
And then the one above is the ink cartridge, which is used for adding ink

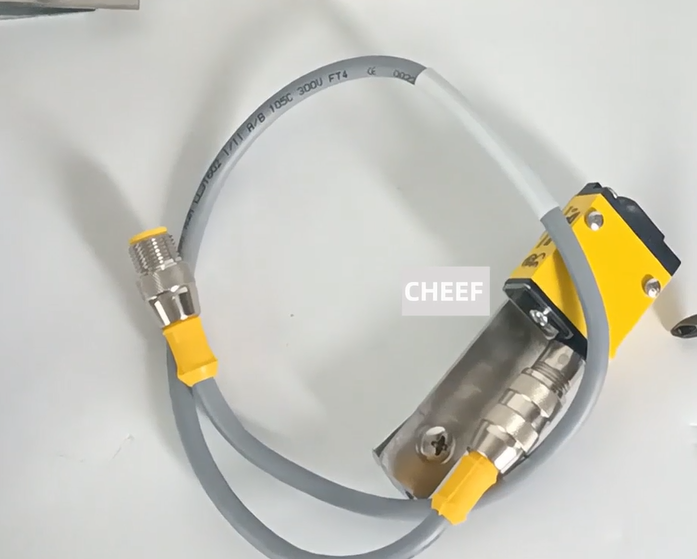

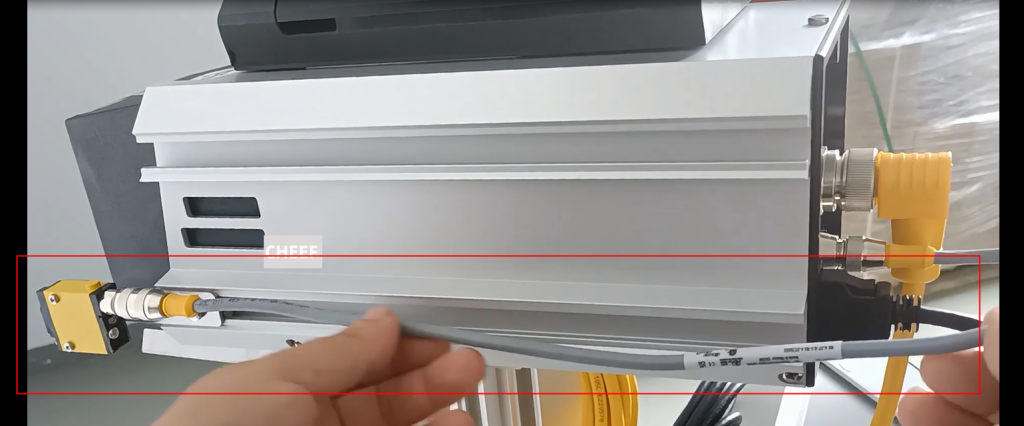

This is a photoelectric power supply, also known as photoelectric.
It’s plugged into our optical power supply, plugged in here
If an encoder needs to be installed here, insert the encoder in this position

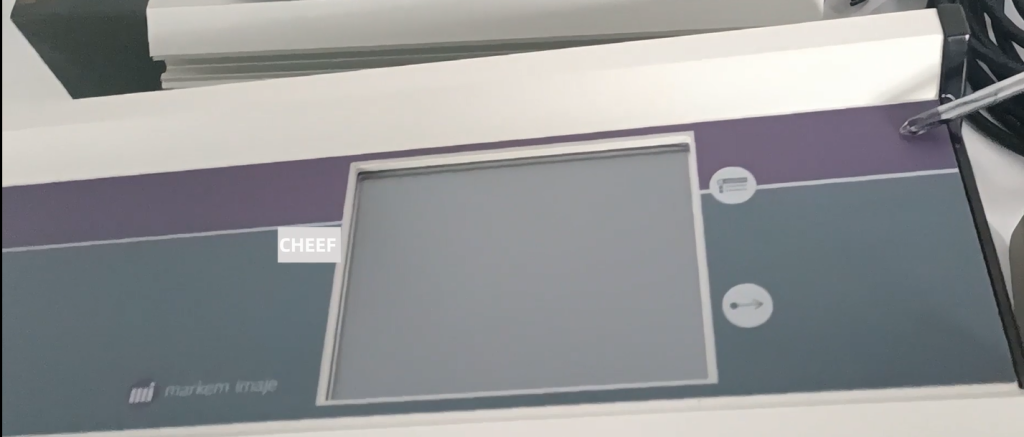

This is the controller, an entire controller

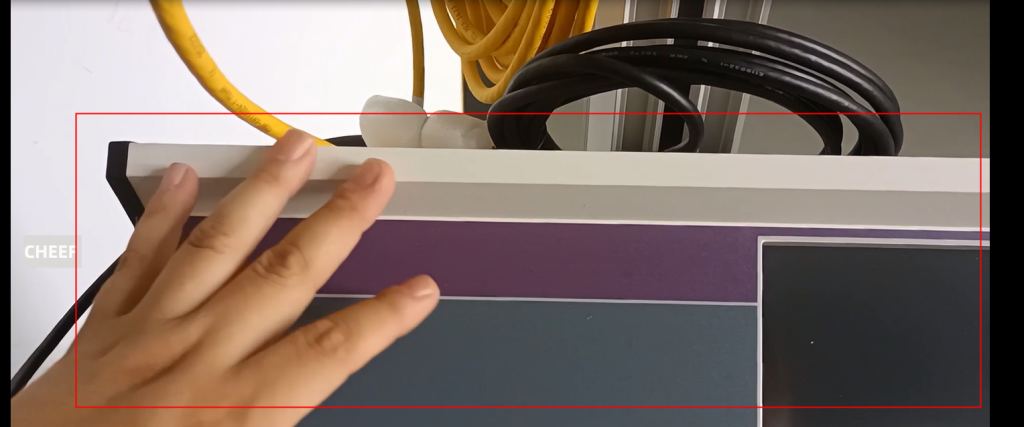

There is a controller bracket here

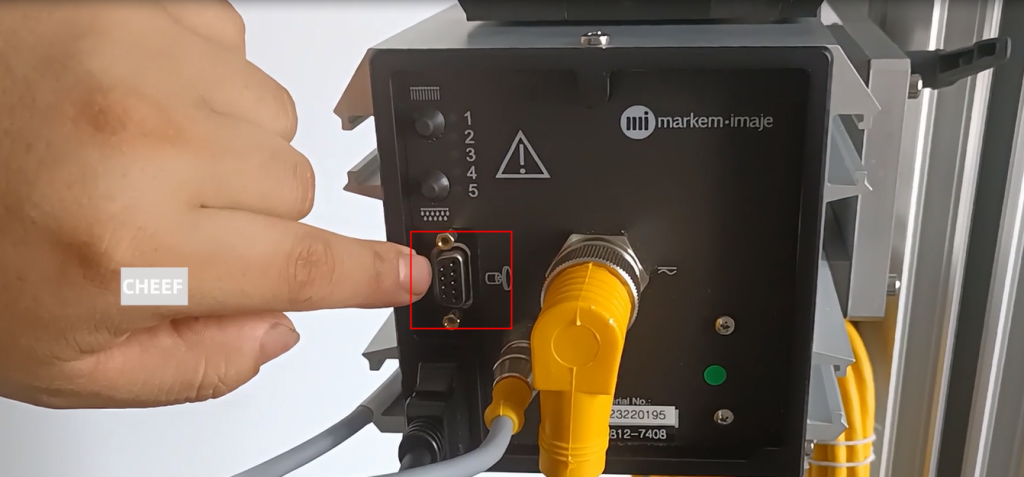

This data cable is used to transmit data. The data cable used by the controller to transmit data to the nozzle
He received our position on his end
Received this position of our transfer head

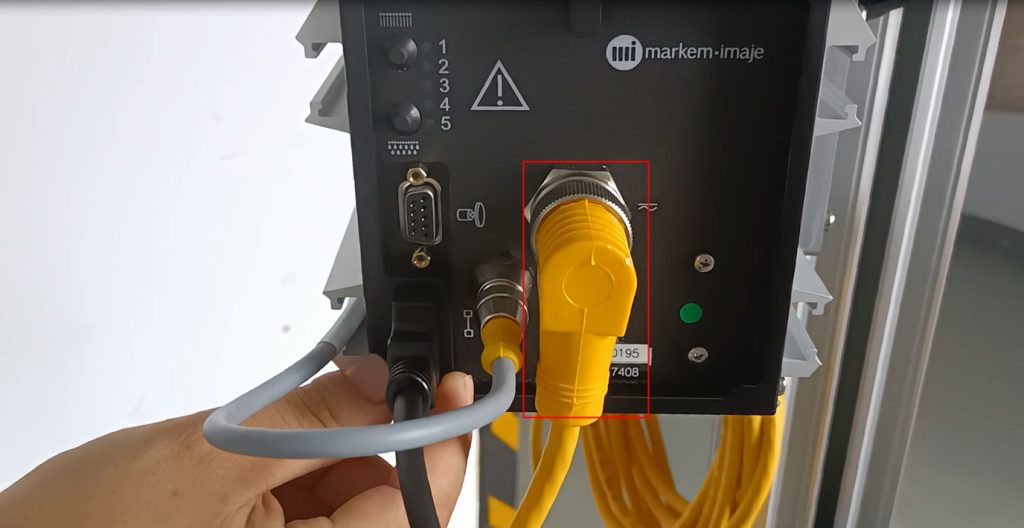

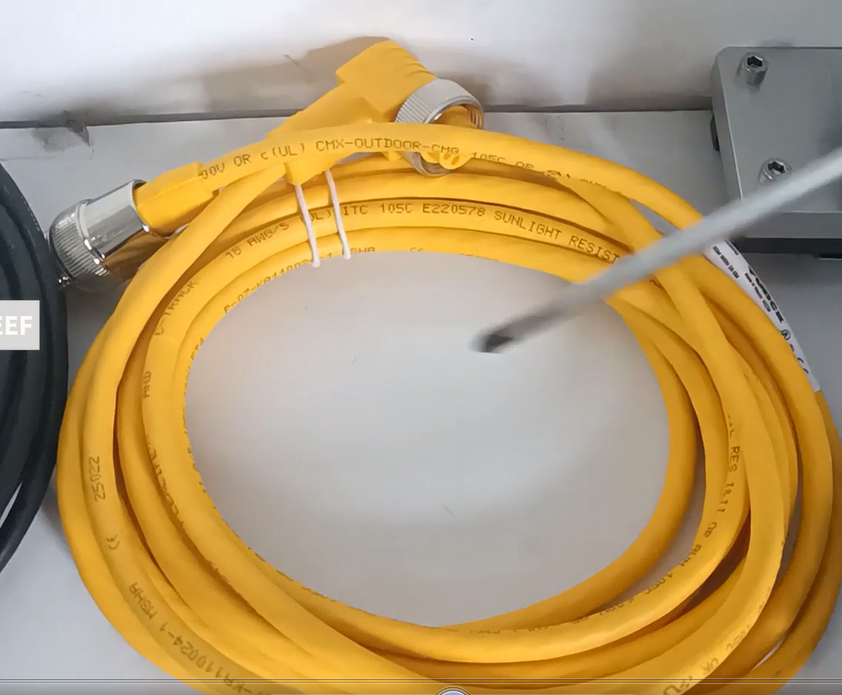

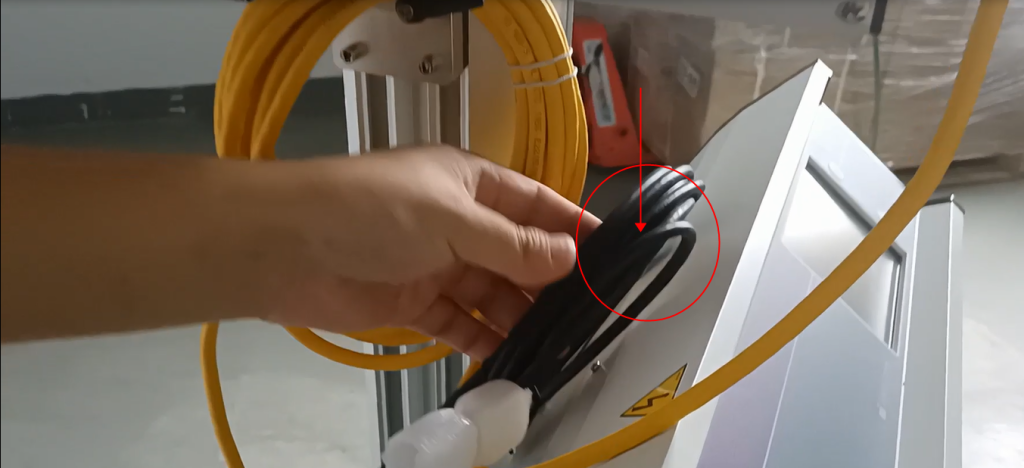

And then this is called a cable, and this is the cable that powers the nozzle,

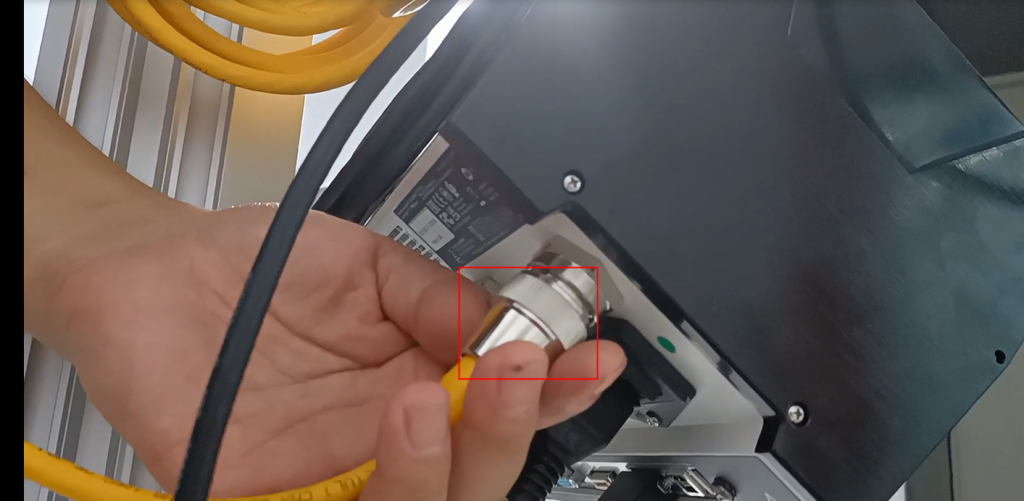

The yellow line connects here.

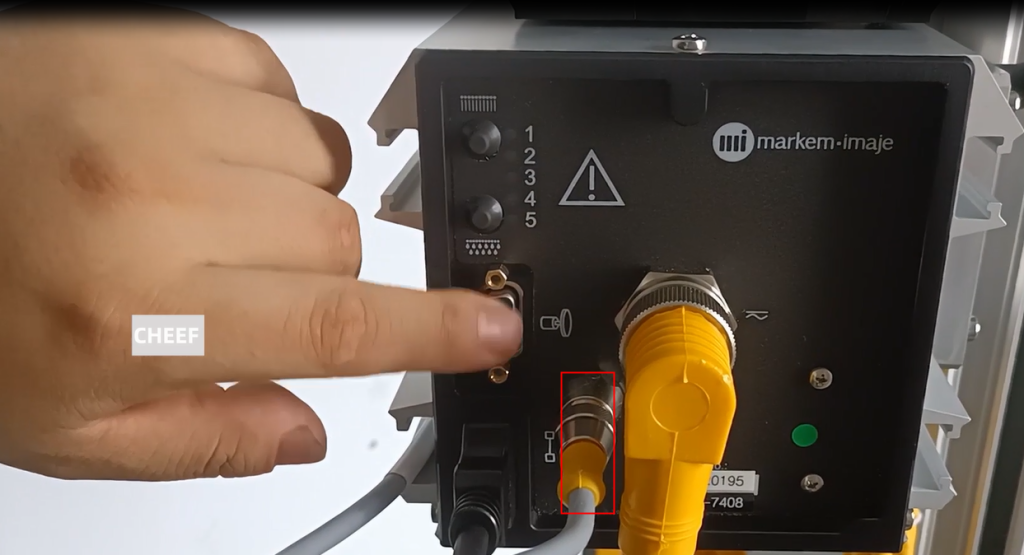

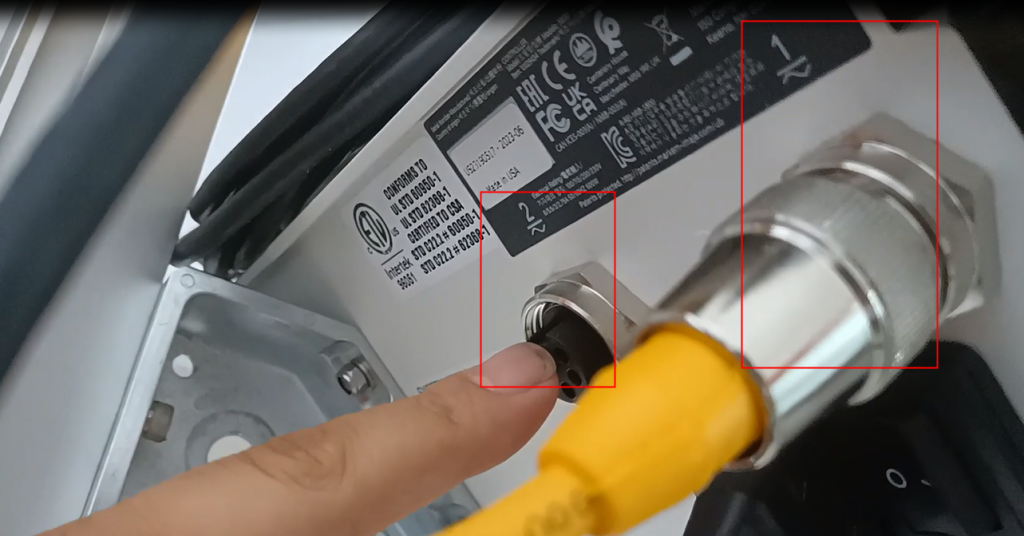

It should be noted that we are connected to this end of the controller. This end
If we are a nozzle, we will receive this one. If the nozzle is one, I will receive it on top of one;
If there are two nozzles, we will have the second nozzle, which we will connect to 2 and the controller.
This is a straight cable, and this end of the data cable is straight
If you receive the print head from us, this right angle is a corner. This must be correct and cannot be connected incorrectly

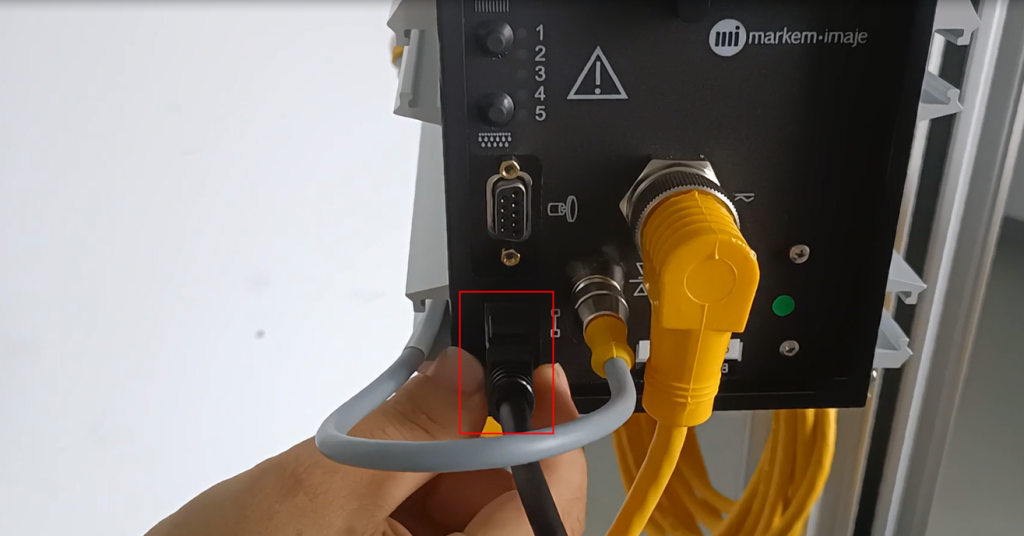

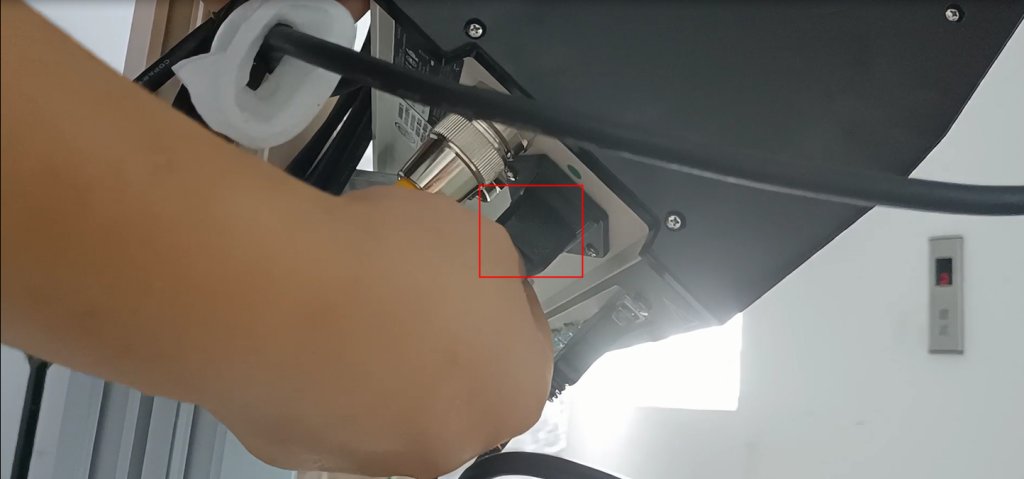

And then below is a power cord
There is also a commonly used USB port next to it, which we need to use to transmit information
