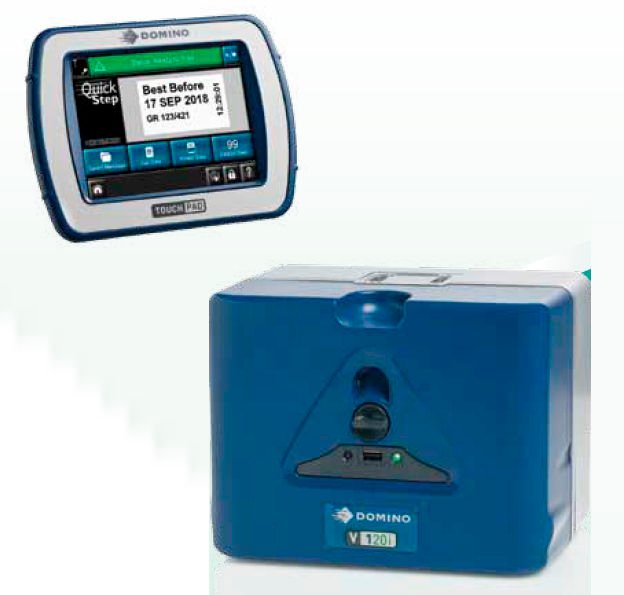

Domino V120I Thermal transfer inkjet printer

fication

Printing Modes

Left hand / Right hand

Print resolution

Maximum print area (IM)

Maximum print area (CM)

Print speed (max) (IM)

Speed range (CM)

Print repeat rate (max)

Ribbon drive technology

Max ribbon length

Standard Ribbon widths

Intermittent Mode (IM) and Continuous Mode (CM) in the same printer

Both options available (convertible with no extra parts in 15 minutes)

300 dpi

32mm x 55mm

32mm x 500mm

400mm/s*

10 mm/s – 750 mm/s*

6 prints/s (with a 10mm long print)*

i-Tech Ribbon Drive with unique Dancing Arm tension control

770m (up to 1925m effective length with Economy Mode)

34mm, 22mm

Ribbon save modes*

Economy Mode

Variable in 1% increments up to 60%

Retraction Mode

Less than 1 mm gap between prints

Column Mode

Yes

Stop mid print

Yes

Print features

Date code format

Offsets

Shift codes

Serial number generation

Fonts

Bar codes

Logos / bitmaps

Yes

Yes

Yes

Yes

Most true type fonts

Yes

Yes

Graphical User Interface

QuickStep, full colour Interface Intuitive navigation via, large, easy to read buttons and Icons.

WYSIWYG print preview. Multilanguage support

Controller options

No dedicated controller required.

Options:

• Domino TouchPad (5.7”)
• Domino TouchPanel (10.4”)
• PC based interface (via Ethernet cable or network)

Connectivity

Ethernet / USB x 2 / mini USB (service)

Inputs

Print Go, Encoder

Outputs

Error, Ready, Ribbon, Warning, Spare (sofware configurable volt free contacts)

Special features

Master slave, macros, password, fastmode

Label creation

Onboard and via QuickDesign (PC application included)

Electrical requirements

90v – 264v AC 50/60Hz, OR 24v DC (+/- 2%) at 5A (if direct)

Dimensions

(W) 218.0mm x (H) 160.0mm x (D) 149.5mm

Weight

5.6kg

TouchPad Specification

Type

Connectivity

Dimensions

Weight

5.7 inch, full colour touchscreen (640×480 resolution). Handheld with docking

station included.

USB, Ethernet, Mini USB (for power / data connection to printer)

(W) 173mm x (H) 128mm x (D) 34mm excluding docking station,

(W) 181mm x (H) 135mm x (D) 50mm including docking station

0.4kg

TouchPanel Specification

Type

I.P. Protection

Connectivity

Electrical requirements

Dimensions

Weight

10.4 inch,full colour touchscreen (800X600 resolution) VESA mountable

with optional brackets

Certified to IP65

2 x USB, Ethernet

100/240 VAC, 50/60 Hz

(W) 307mm x (H) 232mm x (D) 75mm

2.8kg

PSU Specification

Dimensions

(W) 67 mm x (H) 34 mm x (D) 166 mm

Weight

0.4 Kg

Environmental requirements

Temperature: 5°C to 40°C. Humidity: 20-80%, non condensing

*Note: Capability is dependent upon application and substrate type as well as message length
