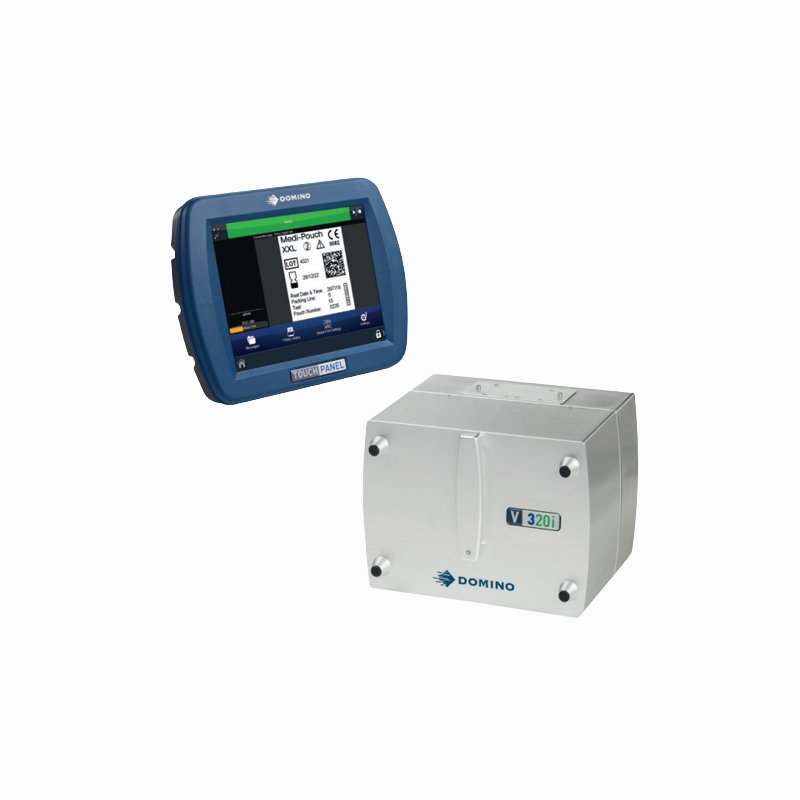

Domino V320I Thermal transfer inkjet printer

V320i (53mm)

V320i (128mm)

Printer Specification

Printing Modes

Left hand / Right hand

Print resolution

Maximum print area (IM)

Maximum print area (CM)

Print speed (max) (IM)

Speed range (CM)

Print repeat rate (max)

Ribbon drive technology

Max ribbon length

Standard Ribbon widths

Intermittent Mode (IM) and Continuous Mode (CM) in the same printer

Both options available (convertible within 30 minutes)

300 dpi

53mm x 115mm

128mm x 115mm

53mm x 2700mm

128mm x 1000mm

720mm/*

10mm/s – 1400 mm/s*

6 prints/s (with a 10mm long print)*

i-Tech Ribbon Drive with unique Dancing Arm tension control

1600m (up to 4000m effective length with Economy Mode)

30mm, 55mm

130mm

Ribbon save modes

Economy mode

Variable in 1% increments up to 60%

Retraction mode

Less than 1mm gap between prints

Column mode

Yes

Stop mid print

Yes

Print features

Date code format

Offsets

Shift codes

Serial number generation

Fonts

Dynamic bar codes

2D codes

Database linking

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Graphical User Interface

QuickStep, full colour Interface Intuitive navigation via large, easy to read buttons and Icons.

WYSIWYG print preview. Multi-language support

Controller options

No dedicated controller required. Hardware Interface options:

• Domino TouchPanel via Ethernet cable or network
• Domino TouchPad via Ethernet cable or network
• PC based interface via Ethernet cable or network

Connectivity

Ethernet, USB, SD card and Mini USB (for service)

Inputs

Print Go, Encoder

Outputs

Error, Ready (software configurable)

Special features

Master slave, password, fastmode, macros, Labelspeed

Label creation

Onboard and via QuickDesign (included)

Electrical requirements

115/240 VAC, 50/60 Hz, 300 VA

Compressed air requirements

0.3ml / Print (6 Bar Max) 0.5ml / Print (6 Bar Max)

Dimensions

W 262mm x H 190.3mm x D 220mm

W 262mm x H 190.3mm x D 295mm

Weight

12kg

13.5kg

TouchPanel Specification

Type

10.4 inch,full colour touchscreen (800X600 resolution) VESA mountable

with optional brackets

I.P. Protection

Certified to IP65

Connectivity

2 x USB, Ethernet

Electrical requirements

100/240 VAC, 50/60 Hz

Dimensions

W 307mm x H 232mm x D 75mm

Weight

2.8kg

TouchPad Specification (not illustrated)

Type

5.7 inch, full colour touchscreen (640×480 resolution) Handheld with docking station included

Connectivity

Ethernet (for connection to printer or Network), USB

Electrical requirements

Powered via universal Mini USB power adapter (suppllied) 115/240 VAC, 50/60Hz input

Dimensions

W 170.0mm x H 127.9mm x D 33.7mm (excluding docking station)

Weight

0.4kg

PSU Specification

Dimensions

W 171.6mm x H 84.6mm x D 273.9mm

Weight

2.45kg

Environmental requirements

Temperature: 5°C to 40°C. Humidity: 20-80%, non condensing
