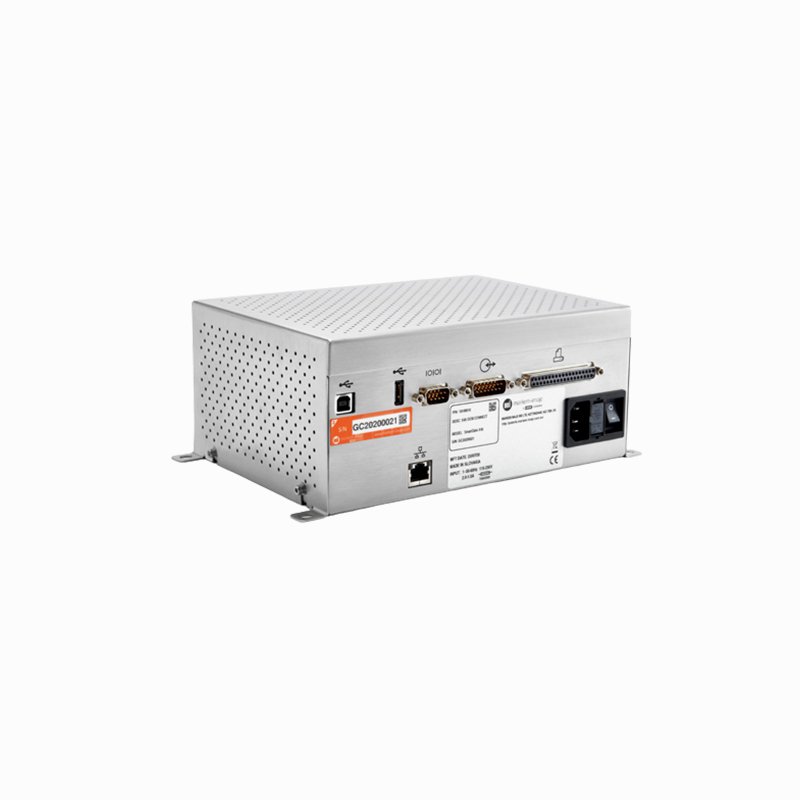

ImajeSmartDate OEM Connect Thermal transfer coding machine

Operations • WEB User Interface or VNC, enables full functionality of the SmartDate printer directly from the HMI (Human Machine Interface) of the packaging machine. • Three Communication Protocols: via the Web Browser on the host PC, via enhanced DCP Communications and via NGPCL Protocol. • SmartDate X45 and X65 User Familiarity: Animated help tutorials, Print /Image Adjust, On-Board Configurable Password Protection. • WYSIWYG print preview of printed message, real-time display of remaining print capacity expressed in hours and number of prints. • Parent/Child function to allow control up to 7 printers. • Full diagnostics (Pack Rate, Speed). • Hardware interface: Inputs: “Print go” and 1 configurable input. Outputs: Fault, warning, and 2 configurable outputs. • Message storage: Can be stored directly on the controller, on the USB, on the host PC mode or on the local network. • S/W interface: USB for downloading images, settings and data files. RS232, Ethernet communications standard. Print features • Print speed: Intermittent: up to 700 mm/s, Continuous: 10 to 1800 mm/s. • Print area: Intermittent: 32mm, 53mm or 128 mm x 75mm, Continuous: 32 mm, 53 mm or 128 mm x 250 mm. • Print features: Automatic printhead setup, Detect: Dead-dot detection, Quick Change Print Head, Combined intermittent and continuous printer, Easily change from left to right hand with no additional parts, Gap between Prints – 0.5 mm, Automatic shift codes and serial numbers, Multiple variable user input fields with alpha-numeric texts, High Pack rate Mode. • Ribbon saving mode: Radial ribbon saving, Interlaced mode, Multi-print triggers and Negative ribbon advance. • Print specifications: Full true type font support, including non-Roman characters and symbols. Printing of real-time clock, dates and auto updating best before dates, barcodes; ITF, Code 39, Code 128, EAN 128, EAN 8, EAN 13, UPC A, UPC E, RSS linear, PDF 417, GS1 DataMatrix, QR and Composite RSS barcodes support. Other characteristics • Supplies: Thermal transfer ribbon available in a variety of grades and colors. • Maximum ribbon length: up to 1100 m. • Minimum ribbon width: 20 mm. • Maximum ribbon width: 130 mm. • Weight: – Printer: 7.8 kg. – SmartDate X45 and X65 OEM Connect: 3Kg. – Remote User Interface: 2.63Kg. Electrical power supply: – SmartDate X45 OEM Connect – 100-230V AC (+/-10%), 50/60Hz. – SmartDate X65 OEM Connect – 115-230V AC (+/- 10%) 50/60Hz. • Air supply: 6 bar/90 psi (maximum) dry, uncontaminated. • Air consumption: from 0.4 ml/print at 2.5 bar. • Operating temperature range: 0 to 40°C. • Humidity: 10% to 90% non-condensing. Options • Detect-Plus: Code Detection. • Promotional Coding. Accessories • Mounting bracket, encoders, and bar code scanner. PC software • Included CoLOS® Free for design of simple messages.
