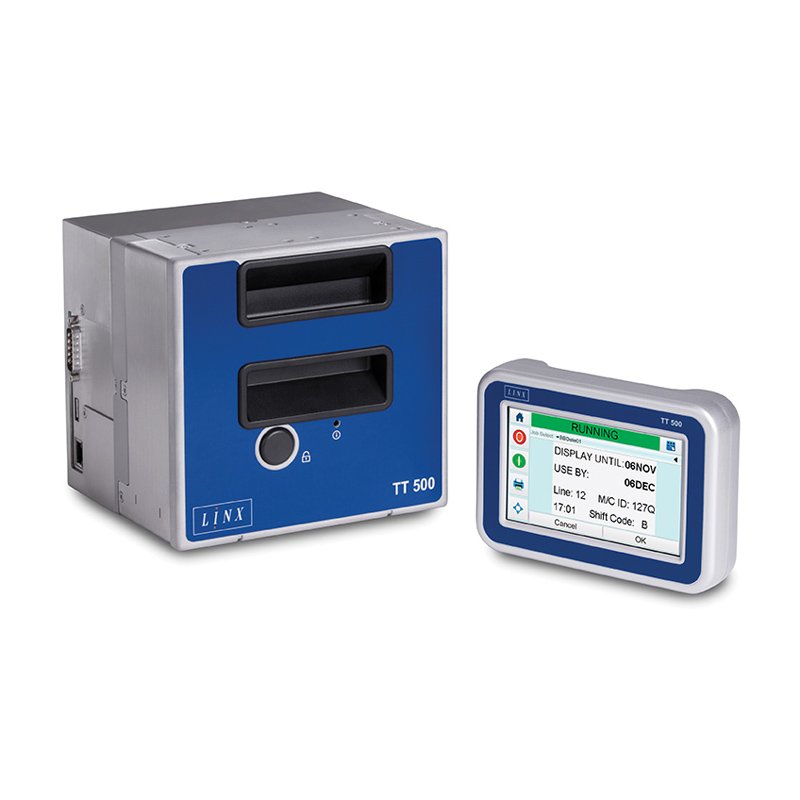

| Intermittent and continuous mode in the same printer |
| Printhead characteristics:
32mm, 200dpi, 8 dots/mm |
| Print area – intermittent motion mode:
Up to 32mm (W) x 47mm (L) |
| Print area – continuous motion mode:
Up to 32mm (W) x 100mm (L) |
| Maximum throughput*:
150 prints per minute |
| Ribbon width:
20mm – 33mm |
| Maximum ribbon length:
700m |
| Print speed* – intermittent motion mode:
50mm/sec – 300mm/sec |
| Print speed* – continuous motion mode:
40mm/sec – 500mm/sec |
| Cable length between printer and power supply unit: 3 metres (5m option) |
| GENERAL FEATURES
5.0” WVGA (800×480) LCD touch screen graphic user interface including WYSIWYG print preview |
| Clutchless bi-directional ribbon drive including rib- bon consumption indicator and ribbon break/end of reel detection |
| Lightweight, simple, push button cassette design |
| On-board diagnostics including printhead health |
| 3 levels of password protection |
| Multiple operator languages |
| Linx CLARiSOFT® message design software |
| Full downloadable font support for Windows® TrueType® (including multiple languages and Unicode support) |
| Barcodes EAN-8, EAN-13, UPC-A, UPC-E and QR |
| Fixed/variable text and numeric fields |
| User enterable text and numeric fields |
| Auto incrementing/decrementing text, counters and barcodes |
| Basic shape drawing |
| Flexible date/time formats |
| Auto best before date calculation |
| Formats for shift coding |
| Multiple graphic formats supported –
any size up to maximum print area |
| Link fields to databases |
| Field orientation 0°, 90°, 180°, 270° |
| Mirror image, image rotation, and inverse printing |
| Real time clock functions |
| User configurable drop down lists fields |
| Radial ribbon save functionality |
| MOUNTING OPTIONS |
| Universal bracket system for integrating printer into intermittent and continuous motion packaging machinery |
| RIBBON RANGE OPTIONS |
| Wax / Resin or Resin ink |
| Range of colours, lengths and widths |
| External inputs (fully software configurable):
2 PNP inputs |
| External outputs (fully software configurable):
2 relay outputs and 2 PNP +24v outputs |
| RS232 |
| Ethernet |
| USB memory stick support |
| Binary and ASCII communications |
| Host PC Mode (remote database) using
CLARiNET® (option) |
| Claricom CLARiNET® coder independent network management software (option) |
| Link up to four TT 500 printers to a single user interface |
| PHYSICAL CHARACTERISTICS |
| Air supply: No compressed air required |
| Humidity range: 85% max |
| Power supply: 100 – 240VAC, 50/60Hz, 2A |
| Operating temperature: 0° – 40°C |
| REGULATORY APPROVALS |
| CE |
| NRTL |
| FCC |
