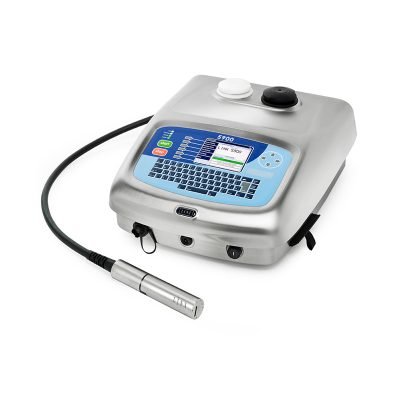

| 5900 | |
|---|---|
| Printhead with 2M conduit, standard | MK7 |
| Printhead/conduit options | 2M, 4M, Short Reach 90D |
| Max lines of print | 3 |
| Character Height Range | 0.06″ to 0.42″ |
| Max speed; single line print | 1,433 fpm |
| Ink Range | Dye based |
| Automatic date codes, sequential numbering | Yes |
| Timed messages | Yes |
| Graphics/Logo printing | No |
| Barcodes, common linear and 2D Datamatrix | No |
| Memory capacity (number of messages) | 1000 |
| Connections/Interfacing | |
| Touch Screen | No |
| Logojet PC Based message and logo creation software and DDE Driver Software | Optional |
| RS232 port | Yes |
| Ethernet Option | Yes |
| Parallel I/O Option | Yes |
| USB port for message and printer setting back up and restore | Yes |
| Shaft encoder, product detector, external single stage alarm, volt-free contact alarm connection | Yes |
| Other | |
| Ingress Protection rating | IP55 |
| Base and Enclosure | Stainless Steel |
| Operating temperature range | 41-113°F |
| Humidity Range (r.h., non-condensing) | 90% max |
| Power Supply | 100-230V 50/60 Hz |
| Power Consumption | 200W |
| Weight | 46 lbs |
| Regulatory approvals | TÜV/GS, CE mark, FCC, RoHS, EAC, NRTL |
