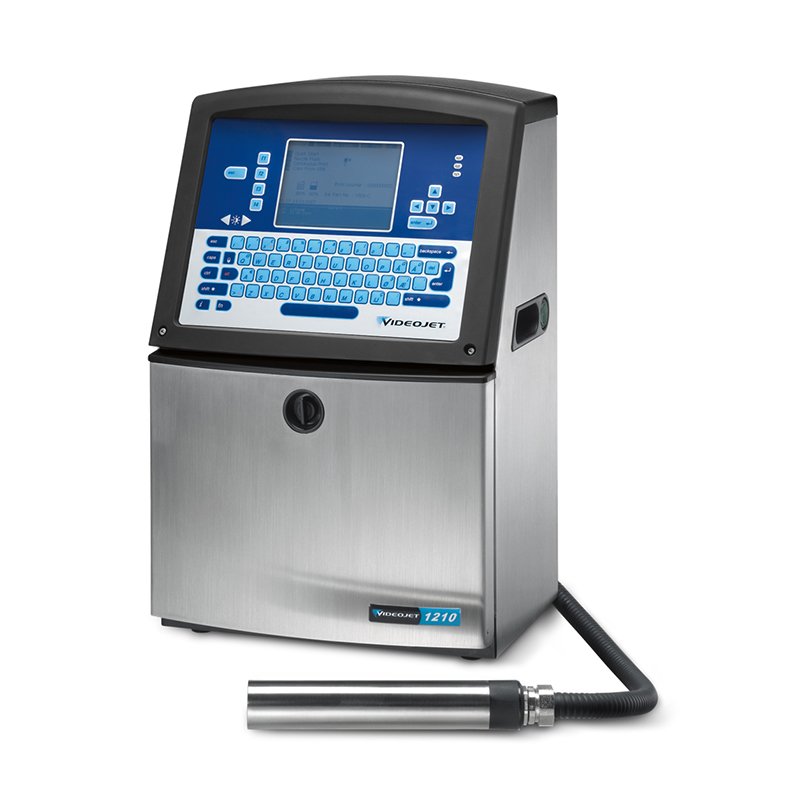

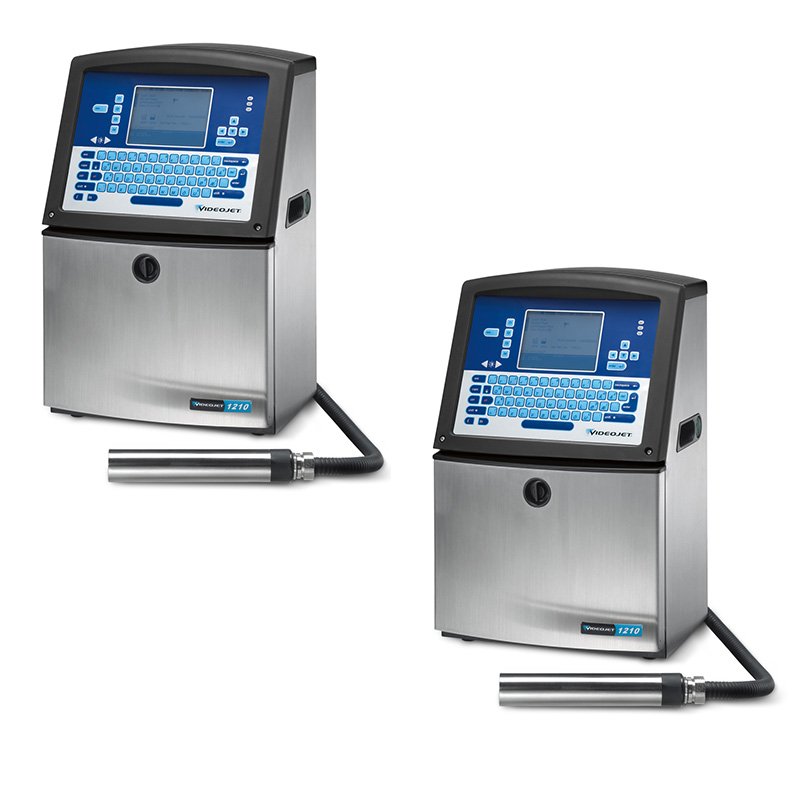

Videojet 1210 CIJ inkjet coding printer plastic packing date printer

Line Speed Capability

Can print 1 to 3 lines of print at speeds of up to 533 ft./min.

(162.5 m/min.) (10 characters per inch, single line of print)

Font Matrix Configuration

Single-line: 5×5, 5×7, 7×9, 11×16, 17×24

Twin-line: 5×5, 5×7, 7×9

Tri-line: 5×5, 5×7

Nominal Character Height

Selectable from 0.079” (2 mm) to 0.279” (8.5 mm), depending on font

Throw Distance

Optimal: 0.472” (12 mm)

Range: 0.197” (5 mm) to 0.591” (15 mm)

Keyboard

Membrane style with tactile feedback, including 72 numeric, alphabetic,

and special function keys. PC-style layout to approximate international

PC convention.

Display

320×240 Bright blue backlit 5.7” LCD display.

WYSIWYG onscreen message editing

Custom Logo/Graphics

Can be created by individual user on printer or PC with optional Videojet

Logo Creator software

Character Sets

American, Arabic, Bulgarian, Chinese, East European, European, Greek,

Hebrew, Hungarian, Italian, Japanese, Japanese/Kanji, Japanese/

Katakana, Korean, Russian, Simplified Chinese, Scandinavian, Thai,

Traditional Chinese, Turkish, Vietnamese

Languages and Interface Options

English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French,

German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean,

Norwegian, Polish, Portuguese, Russian, Simplified Chinese, Spanish,

Swedish, Thai, Traditional Chinese, Turkish and Vietnamese

Message Storage

100 complex messages. Unlimited storage using USB.

Standard USB with logo and memory backup features

Console Dimensions

Stainless steel

21.3” (541 mm) high

13.6” (345 mm) wide

11.2” (285 mm) deep

Environmental Protection

IP55

Printhead

Heated printhead

Diameter: 1.6” (41.3 mm)

Length: 9.5” (241.0 mm)

Printhead Umbilical

Ultra flexible

Length: 6.56’ (2 m)

Diameter: 0.91” (23 mm)

Bend radius: 3.00” (76.2 mm)

Fluids Containers

Ink Smart Cartridge

™

0.793 qt. (750 ml)

Make-up Smart Cartridge 0.793 qt. (750 ml)

Temperature/Humidity Range

41°F to 113°F (5°C to 45°C)

0% to 90% RH non-condensing

Electrical Requirements

Nominal supply power 100-120 / 200-240 VAC at 50/60 Hz., 120 W

Approximate Weight

Unpacked and dry: 39.68 lbs. (18 kg)

Options

Positive air pump

Dry air kit for high humidity (requires plant air)

Product detect, relay, RS 485 expansion board

RS232, encoder, beacon expansion board

9.8-foot (3 m) umbilical

Food grade version

90 degree printhead

Wide range of accessories
