PRINTING CHARACTERISTICS
- Management of one 16 or two 7 dots
printheads
- Up to two lines of print
- Print height from 5 to 60 mm (0,20” – 2,37”)
- Line speed capability: up to 180 mt/min
(591 ft/min)
- Printing rate: up to 266 ct/sec
- 100 messages storage per head
- 80 characters for each message
- Selectable lines vertical gap
- Available font: 5×5, 7×5, 9×7, 16×10
- Bold factor: up to 5 times
- Logos creation from keyboard
- Up to 26 different logos storage
- Automatic calendar and expiration
date print
- Incremental/decreasing products
counter up to 9 digits
- Repeat print – message function
- Printing in all moving directions
- Tower print function (text rotation of 90°)
- Coding throw distance up to 35 mm
(1,37”)

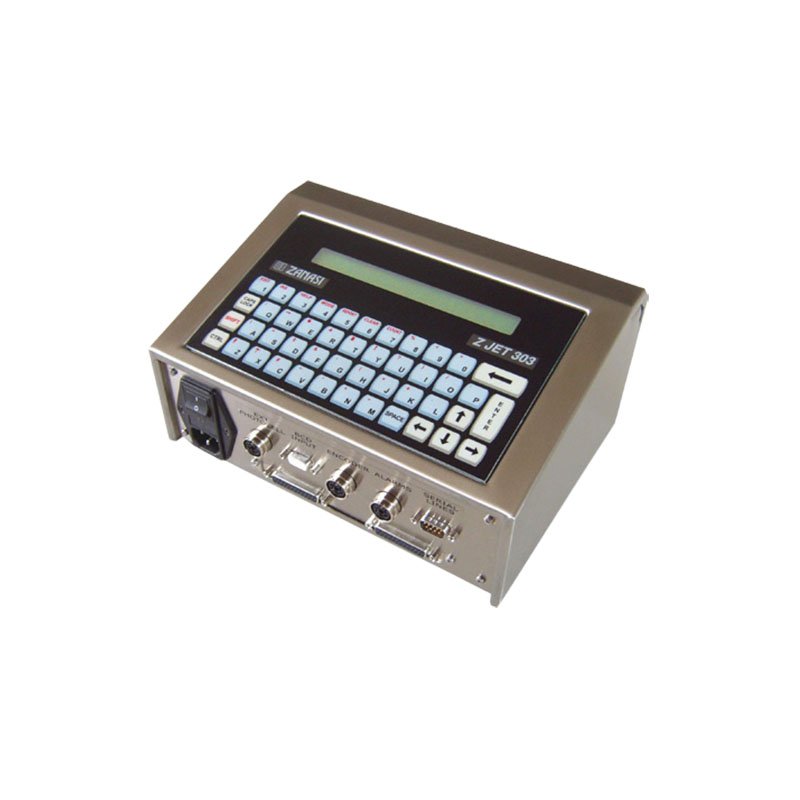

CONSTRUCTION CHARACTERISTICS
- Membrane panel solvent resistant
- Backlit alphanumeric display
- Stainless steel structure AISI 304
- Printhead-console distance: up to
10 mt (33 ft)
GENERAL FEATURES
- Print parameters stored in the
messages
- Report function for executed printing
counter
- Help button for texts editing
- Keypad access with password
- Operator selectable foreign language
prompts
PRINT HEAD
- High speed solenoid technology
- Ink options to include: Rapid dry and
high adhesion inks
- Stainless nozzle plate AISI 304
- Stainless steel structure AISI 304
- Dimensions printhead 7 dots:
230 mm x 80 mm x 45 mm (9,0” x 3,1” x 1,8”)
- Dimensions printhead 16 dots:
230 mm x 80 mm x 85 mm (9,0” x 3,1” x 3,3”)
EXTERNAL CONNECTIONS
- Serial connection: RS232, RS422 or
RS485
- Sensor management for product
detection
- Parallel interface BCD
- Shaft encoder input for variable speed
production lines
- External alarm output
- ENVIRONMENT/ELECTRICAL REQUIREMENTS
- Temperature: 0° – 50°C (32° – 122°F)
- Humidity: 0 – 90% (non-condensing)
- Single phase, 85 – 240 Vac, 50 – 60 Hz,
200 VA
