Ultimate Guide to Videojet DataFlex 6330: Features, Setup, Printhead Options, and Real-World Videos
As industries seek better accuracy, efficiency, and reliability in their production line coding, the Videojet DataFlex® 6330 Thermal Transfer Overprinter (TTO) emerges as a powerhouse of performance and usability. Whether you’re packaging snack foods, pharmaceuticals, cosmetics, or flexible films, the 6330 is engineered to integrate seamlessly into your workflow—ensuring that every print is sharp, compliant, and consistent.
In this extensive blog, we will walk you through the full capabilities of the 6330 model, the differences between its 32mm and 53mm printhead options, key performance specs, ideal applications, advantages of its airless design and iAssure™ technology, dynamic vs. static printing modes, and embedded YouTube video links for real-world unboxing, usage, and training demonstrations.
Section 1: Introduction to the 6330 Series
The Videojet DataFlex 6330 is a mid-range TTO printer tailored for high-performance coding and marking on flexible packaging. Designed to bridge the gap between basic thermal printers and high-speed industrial solutions, the 6330 delivers:
- Print speeds up to 750 mm/s
- Throughput up to 250 prints per minute
- Airless Intelligent Motion™ for reliability without compressed air
- iAssure™ built-in code quality checker for automatic defect detection
- Two printhead widths: 32mm and 53mm to suit different packaging sizes
- Supports both static (intermittent) and dynamic (continuous) printing modes
Section 2: What’s in the Box? – Unboxing and Setup
We captured a full unboxing video to show you exactly what comes with the 6330 package:
Unboxing Video
https://www.youtube.com/playlist?list=PL0Jlv5gC1wdbbE-NBmI8h1w7SqLxg_eXU
Contents typically include:
- 6330 Printer Unit
- 5″ Touchscreen Controller (CLARiTY™ Interface)
- Ribbon Cassette Module
- Power Cables and Data Communication Cables
- Mounting Brackets and Hardware
- USB Stick with Drivers
- Printhead (32mm or 53mm depending on order)
- Documentation & Quick Start Guide
The printer is modular and can be installed in under 30 minutes by trained personnel. Its compact footprint makes it easy to retrofit on most existing packaging lines.
Section 3: Printhead Options – 32mm vs. 53mm
One of the most critical choices when selecting a 6330 is the printhead width. The printer is available in two configurations:
32mm Printhead
- Max print area: 1.3″ x 7.9″ (32mm x 200mm)
- Best suited for narrow, small packs such as sachets, pouches, and stick packs
- Offers high resolution and consistent quality
- Uses smaller width ribbons (up to 33mm)
53mm Printhead
- Max print area: 2.1″ x 7.9″ (53mm x 200mm)
- Ideal for larger flexible film, pillow packs, and wide labels
- Provides greater flexibility in label design and code layout
- Compatible with standard 55mm ribbons
Both versions offer intermittent and continuous mode support and operate using Intelligent Motion™ technology for precision control.
Section 4: Static vs. Dynamic Printing
The 6330 supports two types of motion-based printing modes: Static (Intermittent) and Dynamic (Continuous). Understanding the difference between these two modes is essential to configuring your printer properly.
Static (Intermittent) Mode
- The product or film comes to a complete stop while the printer makes a mark.
- Typically used in vertical form-fill-seal (VFFS) machines or slower horizontal packaging lines.
- The print area is usually more compact (up to 2.95”/75mm in length).
- Ensures precise placement and sharp code quality.
- Recommended for date codes, barcodes, and batch numbers on stationary packs.
Dynamic (Continuous) Mode
- The film or product continues moving while printing occurs.
- Common in horizontal form-fill-seal (HFFS) packaging lines or high-speed conveyors.
- Requires careful synchronization between the printer and product speed.
- Allows a longer print area (up to 7.9”/200mm) and higher throughput.
- Ideal for longer ingredient lists or regulatory info printed on-the-fly.
Key Differences
| Feature | Static Printing | Dynamic Printing |
|---|---|---|
| Product Movement | Stops during print | Moves during print |
| Common Use | VFFS, sachets | HFFS, pouches |
| Max Print Length | ~75mm | ~200mm |
| Precision | Extremely high | High with sync calibration |
| Throughput | Moderate | High |
Your choice between the two modes should depend on your packaging speed, film type, and code content length.
Section 5: Key Features & Benefits
iAssure™ Technology
This built-in code checker automatically detects print defects in real-time. It works without any external cameras or vision systems, reducing rework and saving time.
How it works:
- Captures every code image post-print
- Analyzes it against quality parameters
- Flags or rejects defective codes if they exceed thresholds
Intelligent Motion™ (Airless Technology)
Eliminates the need for compressed air. This reduces operating costs, extends printhead life, and ensures consistent quality.
CLARiTY™ Touchscreen Interface
- 5-inch color touchscreen with WYSIWYG print preview
- Onboard diagnostics
- Password protection
- Print job templates
Ribbon Efficiency & Cassette
- Up to 1,200m ribbon capacity
- Fast cassette change design (less than 60 seconds)
- Ribbon economy modes to reduce waste
Compact and Modular Design
- Fits into tight spaces and integrates with most packaging machines
- Fewer wear parts, simplified maintenance
Section 6: Performance Specifications
| Feature | 32mm Version | 53mm Version |
| Print Width | 1.3” (32mm) | 2.1” (53mm) |
| Max Print Length (Cont. Mode) | 7.9” (200mm) | 7.9” (200mm) |
| Max Print Speed | 750 mm/s | 750 mm/s |
| Throughput (1-line) | Up to 250 ppm | Up to 250 ppm |
| Ribbon Width | Up to 33mm | Up to 55mm |
| Print Gap | 0.5mm (fixed) | 0.5mm (fixed) |
| Interface | Ethernet, RS232, USB | Ethernet, RS232, USB |
Both versions include support for barcodes (EAN-13, UPC-A, DataMatrix, Code 128, etc.) and Unicode fonts.
Section 7: Applications & Industry Use
The 6330 is widely adopted across the following sectors:
- Food Packaging (Bakery, Snacks, Dairy, Frozen Foods)
- Pharmaceutical (Batch coding, expiration dates)
- Cosmetics & Personal Care (Flexible film, tubes, sachets)
- Chemical & Household Products (Resealable pouches)
- Contract Packaging & Private Label (Flexible setup, job changeover)
Common applications include:
- Printing expiration dates, lot codes, barcodes
- Ingredient panels and allergen information
- Traceability codes
- Regulatory and compliance labeling
Section 8: Operator Experience
Videojet designed the 6330 with operators in mind. Here are some of the features that simplify day-to-day tasks:
- On-screen video tutorials for maintenance
- Easy printhead replacement
- Automatic ribbon tension management
- Diagnostics & alerts via CLARiTY and optional VideojetConnect™
- Real-time quality checks with iAssure™
All of this reduces training time, improves line uptime, and decreases human error.
Section 9: Comparison with DataFlex 6530
| Feature | 6330 | 6530 |
| Printhead Options | 32mm, 53mm | 53mm, 107mm |
| iAssure™ Support | Yes | Only 53mm head |
| Max Throughput | 250 ppm | Up to 700 ppm |
| Print Speed | 750 mm/s | 1000 mm/s |
| Target Use | Mid-range needs | High-speed, large format lines |
| Max Ribbon | 1,200m | 1,200m |
For manufacturers seeking faster speeds or wider formats, the 6530 is the better option. But for general-purpose high-quality coding, the 6330 provides exceptional value.
Section 10: YouTube Playlist – Training and Setup Videos
Below is a playlist of videos to support your 6330 journey:
Video Playlist for 6330:
https://www.youtube.com/playlist?list=PL0Jlv5gC1wdbbE-NBmI8h1w7SqLxg_eXU
This playlist includes:
- Unboxing and setup guide
- Ribbon cassette loading
- Printhead replacement
- CLARiTY software interface demo
- Real-life application samples on packaging lines

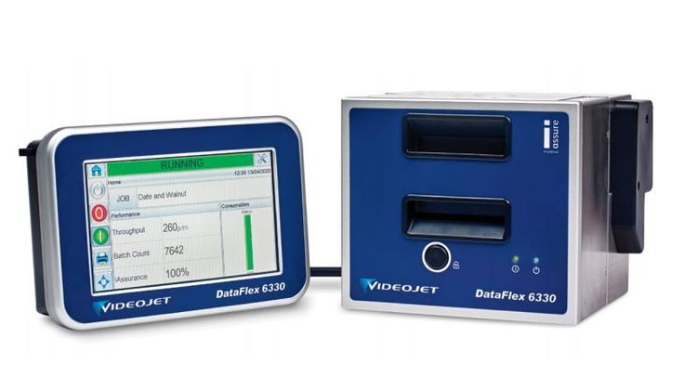

Section 11: Real Product Image
This image shows the real packaging of the Videojet 6330 system, including:
- Main Printer Module
- Control Unit
- Ribbon Cassette
- Power/Data Cables
- Mounting Fixtures
- Screws and Tools
Use this as a reference when verifying your shipment.
Section 12: SEO Keywords and Strategy
To enhance visibility and attract targeted traffic, this blog includes:
- thermal transfer overprinter 6330
- Videojet 6330 printer specifications
- TTO 32mm vs 53mm comparison
- videojet printer setup guide
- CLARiTY touchscreen printer
- airless thermal transfer printer
- iAssure technology
Section 13: Conclusion – Should You Choose the 6330?
If you need an industrial-grade TTO printer that’s cost-effective, reliable, and simple to use, the Videojet 6330 delivers everything a mid-range operation needs:
- Airless performance to reduce maintenance
- Two printhead sizes for maximum flexibility
- Automated quality checks via iAssure™
- CLARiTY touchscreen interface for smarter coding
- Quick integration and easy maintenance
This system is designed to keep your line running smoothly with fewer operator interventions and lower overall costs.
