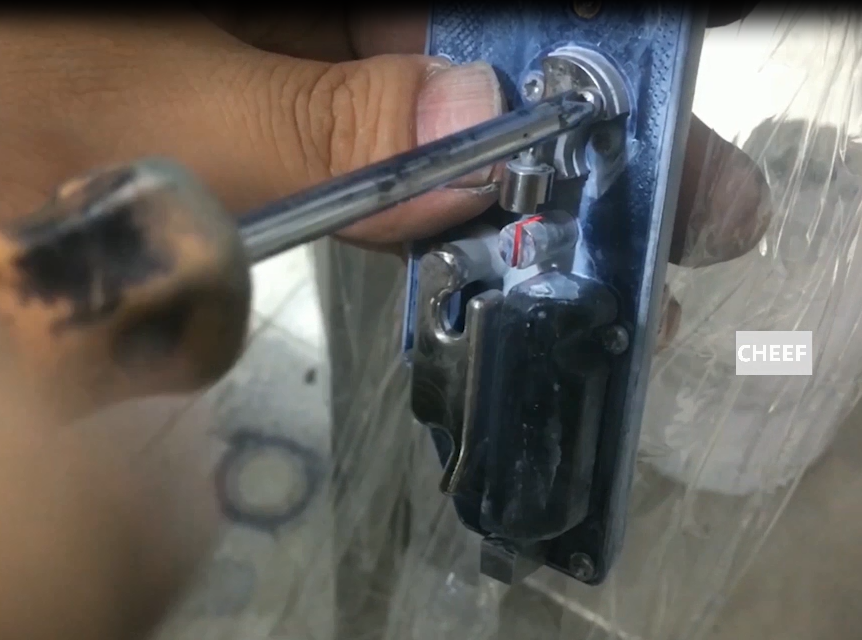

The nozzle can shake. Don’t tighten the screws slightly, they have a certain schedule
If you can’t adjust it to the recycling tank, it means your nozzle is blocked.
The nozzle is completely open and can basically enter the recycling tank.

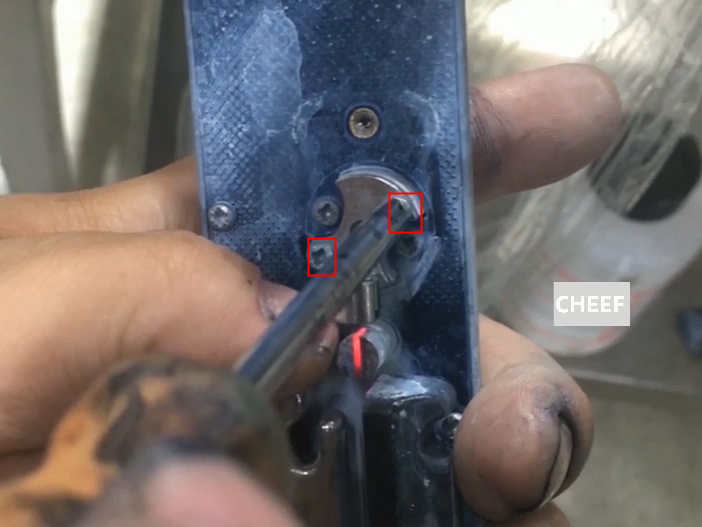

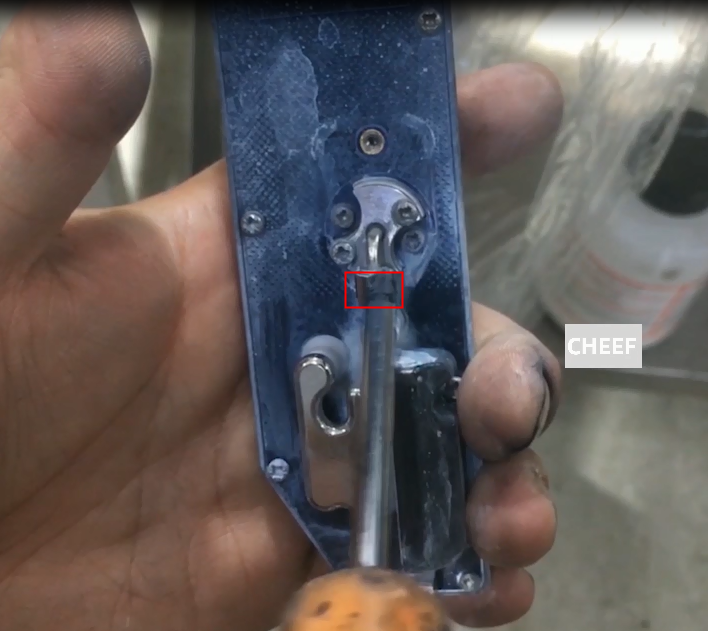

This means that the position is left and right, adjust this screw

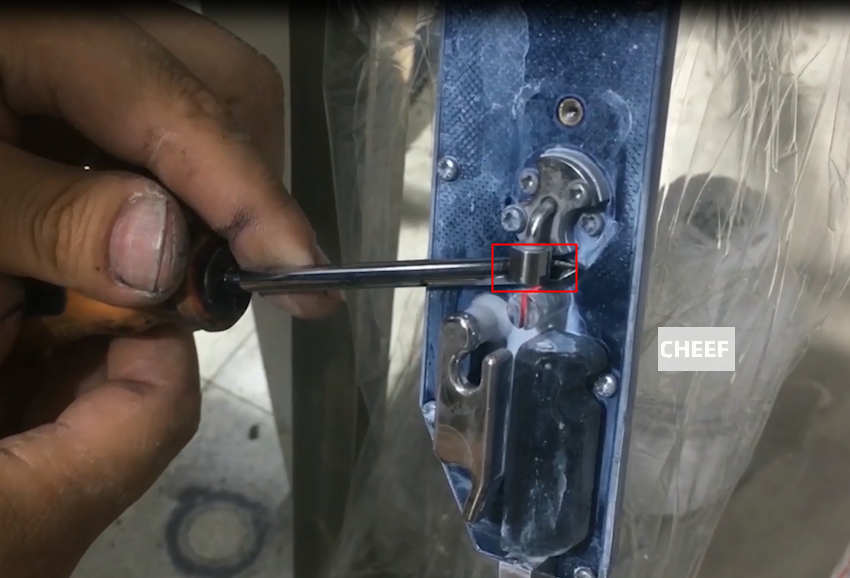

Adjust up and down: Push it up and down, gently and slowly breaking it off. If it’s high, slowly press down

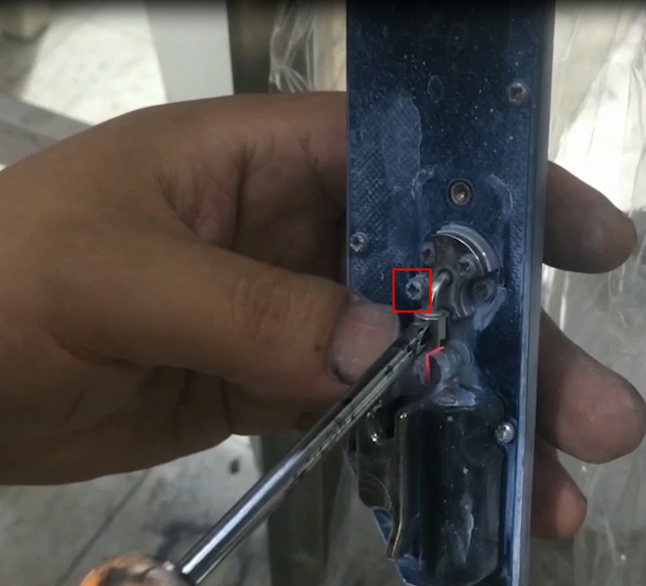

Just tighten the screws a little bit

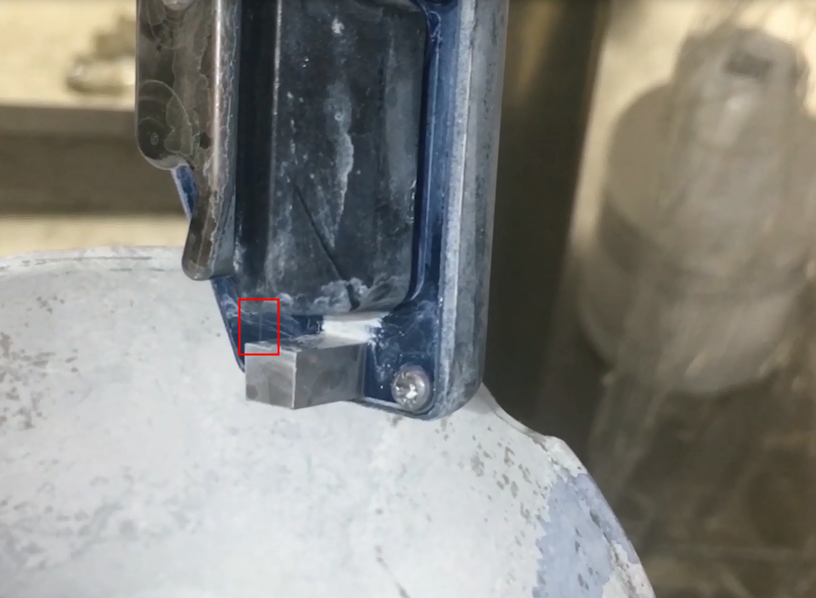

Generally, the nozzle should be positioned as close to the middle of the charging slot as possible. The hole in the nozzle and the slot in the middle of the charging slot below should be on the same line.

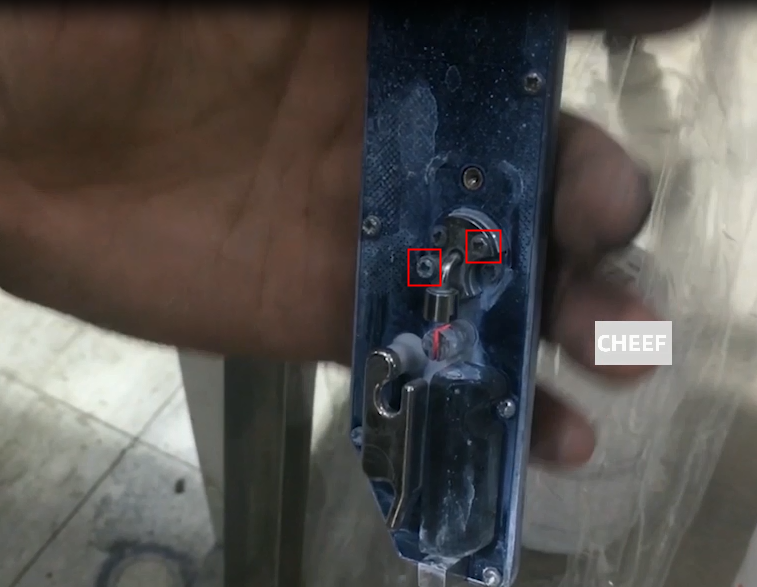

Tighten the screws slightly
If you want to adjust it, tap it slightly. Just tap left and right because the screws are loose

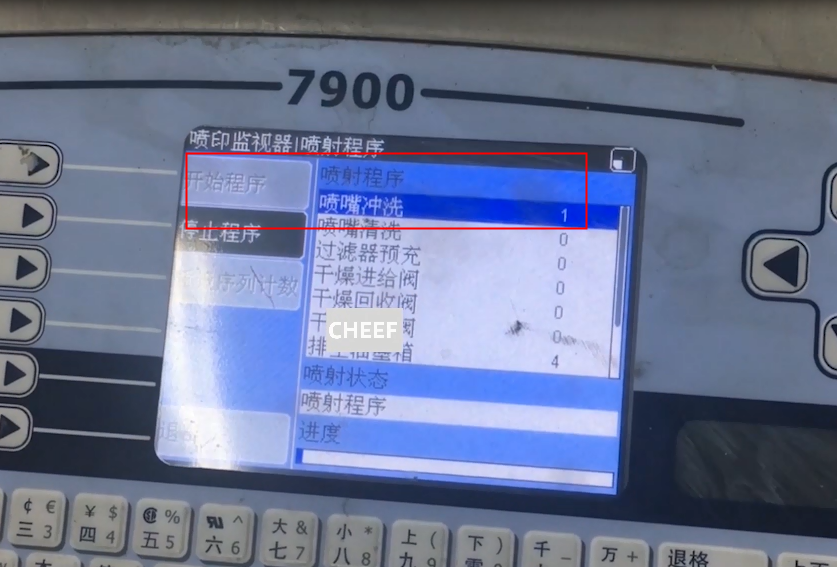

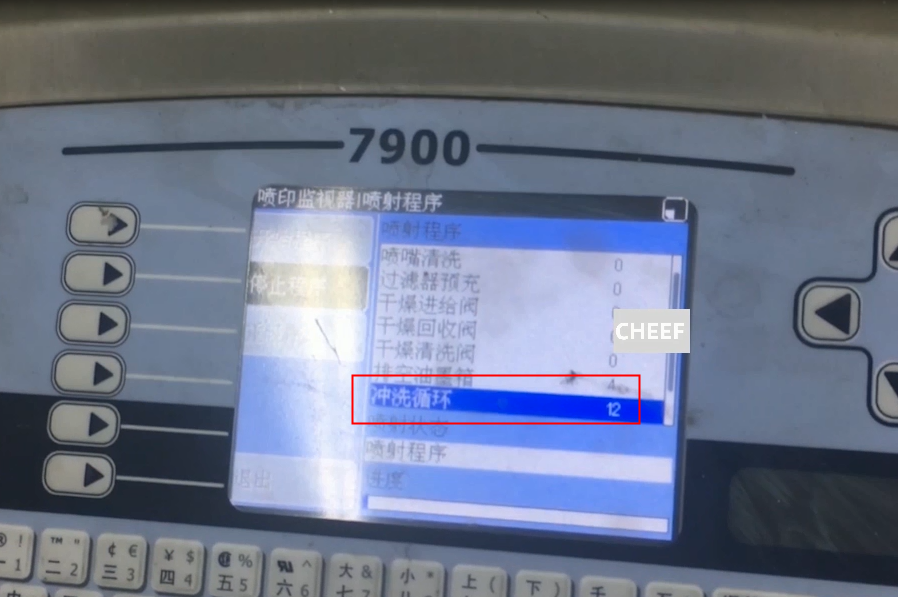

We will directly start the flushing cycle
The nozzle is a bit blocked, turn on the nozzle for flushing

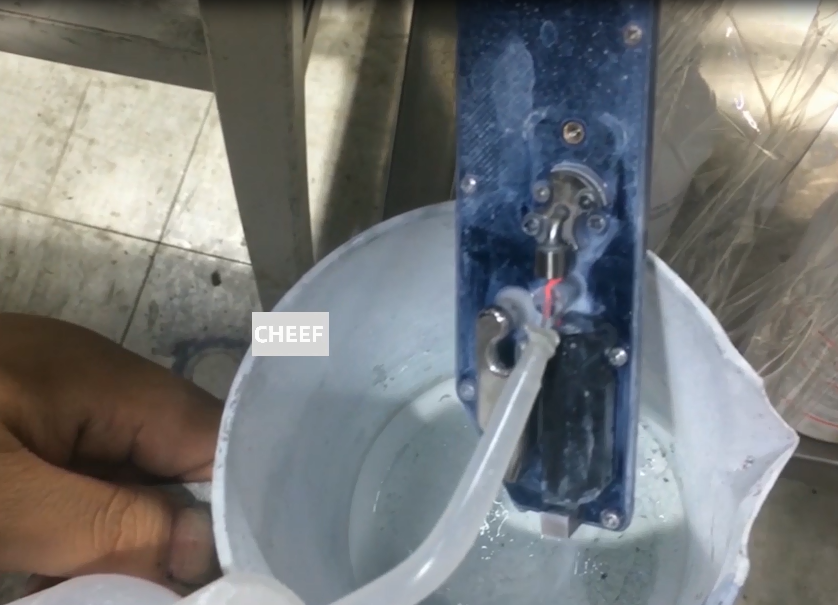

Flush the nozzle inside with a cleaning kettle

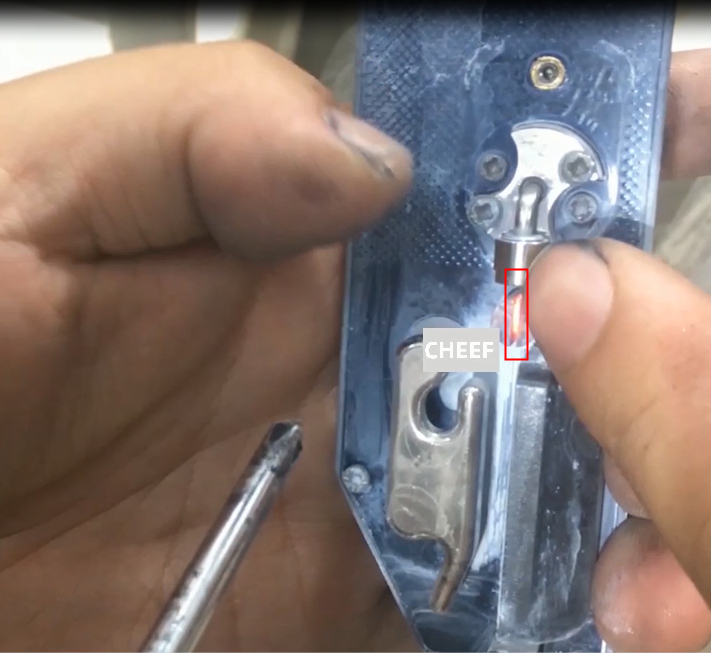

This small thread is the ink thread. The ink thread has entered the recycling bin
